Manage your Data with DataLad:

From local version control to data publication

Julian Kosciessa @JulianKosciessa	(kindly power-point-karaoke-ing with slides from Adina Wagner)
Cognitive Neuromodulation Group, Donders Institute for Brain, Cognition and Behaviour

Logistics

• Collaborative, public notes, networking, & anonymous questions at etherpad.wikimedia.org/p/datalad@cuttinggardens


• We are using a JupyterHub at datalad-hub.inm7.de. Draw a username!
  You can log in with a password of your choice (at least 8 characters).


• Format:
• Mostly hands-on: Watch me live-code, and try out the software yourself in the browser. Conceptual wrap-up at the end.
• Ask questions any time

Further resources and stay in touch

If you have questions after the workshop...


Reach out to to the DataLad team via
• Matrix (free, decentralized communication app, no app needed). We run a weekly Zoom office hour (Tuesday, 4pm Berlin time) from this room as well.
• The development repository on GitHub


Reach out to the (Neuro-) user community with
• A question on neurostars.org with a datalad tag


Find more user tutorials or workshop recordings
• On DataLad's YouTube channel
• In the DataLad Handbook
• In the DataLad RDM course
• In the Official API documentation
• In an overview of most tutorials, talks, videos at github.com/datalad/tutorials

Acknowledgements

DataLad software & ecosystem Psychoinformatics Lab, Research center Jülich Center for Open Neuroscience, Dartmouth College Joey Hess (git-annex) >100 additional contributors

Funders Collaborators

DataLad usecases

A common usecase

Alice is a PhD student in a research team. She works on a fairly typical research project: Data collection & processing. First sample → final result = complex process

How does Alice go about her daily job?

A common usecase

• In her project, Alice likes to have an automated record of:
  • when a given file was last changed
  • where it came from
  • what input files were used to generate a given output
  • why some things were done.


• Even if she doesn't share her work, this is essential for her future self
• Her project is exploratory: Frequent changes to her analysis scripts
• She enjoys the comfort of being able to return to a previously recorded state

This is: *local version control*

A common usecase

• Alice's work is not confined to a single computer:
  • Laptop / desktop / remote server / dedicated back-up
  • Alice wants to automatically & efficiently synchronize


• Parts of the data are collected or analyzed by colleagues. This requires:
  • distributed synchronization with centralized storage
  • preservation of origin & authorship of changes
  • effective combination of simultaneous contributions

This is: *distributed version control*

A common usecase

• Alice applies local version control for her own work, and reproducibly records it
• She also applies distributed version control when working with colleagues and collaborators
• She often needs to work on a subset of data at any given time:
  • all files are kept on a server
  • a few files are rotated into and out of her laptop
• Alice wants to publish the data at project's end:
  • raw data / outputs / both
  • completely or selectively

This is: *data management (with DataLad 😀)*

DataLad

• Domain-agnostic command-line tool (+ graphical user interface), built on top of Git & Git-annex
• Major features:
Version-controlling arbitrarily large content
Version control data & software alongside to code!
Transport mechanisms for sharing & obtaining data
Consume & collaborate on data (analyses) like software
(Computationally) reproducible data analysis
Track and share provenance of all digital objects
(... and much more)

Let's try it out

datalad-hub.inm7.de

username:

what you draw from the jaw

password:

Set at first login, at least 8 characters

Important! The Hub is a shared resource. Don't fill it up :)

Git identity setup


            git config --get user.name
            git config --get user.email




                git config --global user.name "Adina Wagner"
                git config --global user.email "adina.wagner@t-online.de"




                git config --global --add datalad.extensions.load next



Using DataLad in a terminal


            datalad --version






                datalad --help

            The help may be displayed in a pager - exit it by pressing "q"



                datalad wtf -S system



Using datalad via its Python API


            ipython




                import datalad.api as dl
                dl.create(path='mydataset')




                exit



Datalad datasets...

...Datalad datasets


            datalad create -c yoda my-analysis




                cd my-analysis




                ls -la .



Version control...

...Version control


            echo "# My example DataLad dataset" >| README.md




                datalad status




                datalad save -m "Add project title into the README"




                echo "Contains a small data analysis for my project" >> README.md




                git diff




                datalad save -m "Add information on the dataset contents to the README"



...Version control


                git log




                tig

            (navigate with arrow keys and enter, press "q" to go back and exit the program)


            datalad download-url -m "Add an analysis script" \
  -O code/mne_time_frequency_tutorial.py \
  https://raw.githubusercontent.com/datalad-handbook/resources/master/mne_time_frequency_tutorial.py



            git log code/mne_time_frequency_tutorial.py


Local version control

Procedurally, version control is easy with DataLad!

• Save meaningful units of change
• Attach helpful commit messages

Computationally reproducible execution I...

• which script/pipeline version
• was run on which version of the data
• to produce which version of the results?

... Computationally reproducible execution I

            black code/mne_time_frequency_tutorial.py


            git diff


            git restore code/mne_time_frequency_tutorial.py


            datalad run -m "Reformat code with black" \
 "black code/mne_time_frequency_tutorial.py"


            git show


            datalad rerun


Data consumption & transport...

...Data consumption & transport...


            # just an example:
            datalad clone \
            https://github.com/psychoinformatics-de/studyforrest-data-phase2.git



Or as linked dataset, nested in another dataset in a superdataset-subdataset hierarchy:


            # just an example:
            datalad clone -d . \
            https://github.com/psychoinformatics-de/studyforrest-data-phase2.git



• Helps with scaling (see e.g. the Human Connectome Project dataset )
• Version control tools struggle with >100k files
• Modular units improves intuitive structure and reuse potential
• Versioned linkage of inputs for reproducibility

...Dataset nesting

            datalad clone --dataset . \
   https://github.com/OpenNeuroDatasets/ds003104.git \
   input/



                datalad subdatasets




                git show



...Data consumption & transport


            datalad get sub-01




                datalad drop sub-01


dl.get('input/sub-01')
[really complex analysis]
dl.drop('input/sub-01')

Git versus Git-annex

Data in datasets is either stored in Git or git-annex

By default, everything is annexed, i.e., stored in a dataset annex by git-annex

With annexed data, only content identity (hash) and location information is put into Git, rather than file content. The annex, and transport to and from it is managed with git-annex

Git versus Git-annex

Configurations (e.g., YODA), custom rules, or command parametrization determines if a file is annexed

Storing files in Git or git-annex has distinct advantages:

Git	git-annex
handles small files well (text, code)	handles all types and sizes of files well
file contents are in the Git history and will be shared upon git/datalad push	file contents are in the annex. Not necessarily shared
Shared with every dataset clone	Can be kept private on a per-file level when sharing the dataset
Useful: Small, non-binary, frequently modified, need-to-be-accessible (DUA, README) files	Useful: Large files, private files

YODA configures the contents of the code/ directory and the dataset descriptions (e.g., README files) to be in Git. There are many other configurations, and you can also write your own.

...Computationally reproducible execution...

cd ..
python code/mne_time_frequency_tutorial.py

• Software can be difficult or impossible to install (e.g. conflicts with existing software, or on HPC) for you or your collaborators
• Different software versions/operating systems can produce different results: Glatard et al., doi.org/10.3389/fninf.2015.00012
• Software containers encapsulate a software environment and isolate it from a surrounding operating system. Two common solutions: Docker, Singularity

...Computationally reproducible execution...

• The datalad run can run any command in a way that links the command or script to the results it produces and the data it was computed from
• The datalad rerun can take this recorded provenance and recompute the command
• The datalad containers-run (from the extension "datalad-container") can capture software provenance in the form of software containers in addition to the provenance that datalad run captures

...Computationally reproducible execution


               datalad containers-add python-env \
                --url https://files.inm7.de/adina/resources/mne \
                --call-fmt "singularity exec {img} {cmd}"




                datalad containers-list




datalad containers-run -m "run classification analysis in python environment" \
  --container-name python-env \
  --input "input/sub-01/meg/sub-01_task-somato_meg.fif" \
  --output "figures/*" \
  "python3 code/mne_time_frequency_tutorial.py {inputs}"




                datalad diff -f HEAD~1




                git log -n 1



Publishing datasets...

Publishing datasets...

• Create a GIN user account and log in: gin.g-node.org/user/sign_up
• Create an SSH key


                ssh-keygen -t ed25519 -C "your-email"
                eval "$(ssh-agent -s)"
                ssh-add ~/.ssh/id_ed25519



• upload the SSH key to GIN


                cat ~/.ssh/id_ed25519.pub




• Publish your dataset!

...Publishing datasets


            datalad create-sibling-gin example-analysis --access-protocol ssh




                datalad siblings




                datalad push --to gin



Using published data...

        cd ../
datalad clone \
   https://gin.g-node.org/adswa/example-analysis \
   myclone



                cd myclone




                datalad get figures/inter_trial_coherence.png




                datalad drop figures/inter_trial_coherence.png




                datalad rerun



How does this relate to reproducibility?

Exhaustive tracking

The building blocks of a scientific result are rarely static

Data changes (errors are fixed, data is extended, naming standards change, an analysis requires only a subset of your data...)

Piled Higher and Deeper 1323

Exhaustive tracking

Exhaustive tracking

Digital provenance

= "The tools and processes used to create a digital file, the responsible entity, and when and where the process events occurred"

• Have you ever saved a PDF to read later onto your computer, but forgot where you got it from? Or did you ever find a figure in your project, but forgot which analysis step produced it?
Scriberia and The Turing Way (CC-BY)

Data transport: Security and reliability - for data

Ultimate goal: Reusability

The YODA principles

DataLad Datasets for data analysis

• A DataLad dataset can have any structure, and use as many or few features of a dataset as required.
• However, for data analyses it is beneficial to make use of DataLad features and structure datasets according to the YODA principles:

P1: One thing, one dataset

P2: Record where you got it from, and where it is now

P3: Record what you did to it, and with what

Why Modularity?

• 1. Reuse and access management
• 2. Scalability
• 3. Transparency

Original:

/dataset
├── sample1
│   └── a001.dat
├── sample2
│   └── a001.dat
...

Without modularity, after applied transform (preprocessing, analysis, ...):
/dataset
├── sample1
│   ├── ps34t.dat
│   └── a001.dat
├── sample2
│   ├── ps34t.dat
│   └── a001.dat
...
Without expert/domain knowledge, no distinction between original and derived data possible.

Why Modularity?

• 3. Transparency

Original:

/raw_dataset
├── sample1
│   └── a001.dat
├── sample2
│   └── a001.dat
...

With modularity after applied transform (preprocessing, analysis, ...)

/derived_dataset
├── sample1
│   └── ps34t.dat
├── sample2
│   └── ps34t.dat
├── ...
└── inputs
    └── raw
        ├── sample1
        │   └── a001.dat
        ├── sample2
        │   └── a001.dat
        ...

Clearer separation of semantics, through use of pristine version of original dataset within a new, additional dataset holding the outputs.

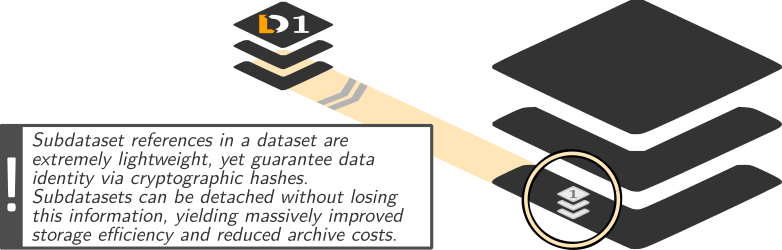

Dataset linkage

$ datalad clone --dataset . http://example.com/ds inputs/rawdata

$ git diff HEAD~1
diff --git a/.gitmodules b/.gitmodules
new file mode 100644
index 0000000..c3370ba
--- /dev/null
+++ b/.gitmodules
@@ -0,0 +1,3 @@
+[submodule "inputs/rawdata"]
+       path = inputs/rawdata
+       url = http://example.com/importantds
diff --git a/inputs/rawdata b/inputs/rawdata
new file mode 160000
index 0000000..fabf852
--- /dev/null
+++ b/inputs/rawdata
@@ -0,0 +1 @@
+Subproject commit fabf8521130a13986bd6493cb33a70e580ce8572

Take home messages

Data deserves version control

It changes and evolves just like code, and exhaustive tracking lays a foundation for reproducibility

Reproducible science relies on good data management

But effort pays off: Increased transparency, better reproducibility, easier accessibility, efficiency through automation and collaboration, streamlined procedures for synchronizing and updating your work, ...

DataLad can help with some things

Have access to more data than you have disk space

Who needs short-term memory when you can have automatic provenance capture?

Link versioned data to your analysis at no disk-space cost

...

Scalability

FAIRly big setup

Exhaustive tracking
• datalad-ukbiobank extension downloads, transforms & track the evolution of the complete data release in DataLad datasets
• Native and BIDSified data layout (at no additional disk space usage)
• Structured in 42k individual datasets, combined to one superdataset
• Containerized pipeline in a software container
• Link input data & computational pipeline as dependencies

FAIRly big workflow

portability
• Parallel processing: 1 job = 1 subject (number of concurrent jobs capped at the capacity of the compute cluster)
• Each job is computed in a ephemeral (short-lived) dataset clone, results are pushed back: Ensure exhaustive tracking & portability during computation
• Content-agnostic persistent (encrypted) storage (minimizing storage and inodes)
• Common data representation in secure environments

FAIRly big provenance capture

Provenance
• Every single pipeline execution is tracked
• Execution in ephemeral workspaces ensures results individually reproducible without HPC access

Thank you for your attention!

	Women neuroscientists are underrepresented in neuroscience. You can use the Repository for Women in Neuroscience to find and recommend neuroscientists for conferences, symposia or collaborations, and help making neuroscience more open & divers.

Command summaries

Summary - Local version control

datalad create creates an empty dataset.

Configurations (-c yoda, -c text2git) add useful structure and/or configurations.

A dataset has a history to track files and their modifications.

Explore it with Git (git log) or external tools (e.g., tig).

datalad save records the dataset or file state to the history.

Concise commit messages should summarize the change for future you and others.

datalad download-url obtains web content and records its origin.

It even takes care of saving the change.

datalad status reports the current state of the dataset.

A clean dataset status (no modifications, not untracked files) is good practice.

Summary - Dataset consumption & nesting

datalad clone installs a dataset.
It can be installed “on its own”: Specify the source (url, path, ...) of the dataset, and an optional path for it to be installed to.


Datasets can be installed as subdatasets within an existing dataset.
The --dataset/-d option needs a path to the root of the superdataset.


Only small files and metadata about file availability are present locally after an install.
To retrieve actual file content of annexed files, datalad get downloads file content on demand.


Datasets preserve their history.
The superdataset records only the version state of the subdataset.

Summary - Reproducible execution

datalad run records a command and its impact on the dataset.
All dataset modifications are saved - use it in a clean dataset.


Data/directories specified as --input are retrieved prior to command execution.
Use one flag per input.


Data/directories specified as --output will be unlocked for modifications prior to a rerun of the command.
Its optional to specify, but helpful for recomputations.


datalad containers-run can be used to capture the software environment as provenance.
Its ensures computations are ran in the desired software set up. Supports Docker and Singularity containers


datalad rerun can automatically re-execute run-records later.
They can be identified with any commit-ish (hash, tag, range, ...)
