Acknowledgements

Agenda

Talk: Using DataLad to interface RDM infrastructures
Code-along demo: Publishing datasets

`1`

`Using DataLad to interface RDM infrastructures`

whatisdatalad_2023.html

`2`

`Code-along demonstration`

Practical aspects

We'll work in the browser on a cloud server with JupyterHub
Cloud-computing environment:
- datalad-hub.inm7.de
We have pre-installed DataLad and other requirements
We will work via the terminal
Draw a username, and set a password of your choice when logging in for the first time; remember it!

Using DataLad in the Terminal

Check the installed version:

datalad --version

For help on using DataLad from the command line:


                datalad --help

For extensive info about the installed package, its dependencies, and extensions, use wtf:


                datalad wtf

git identity

Check git identity:


            git config --get user.name
            git config --get user.email

Configure git identity:


                git config --global user.name "Stephan Heunis"
                git config --global user.email "s.heunis@fz-juelich.de"

Use the latest datalad features:


                git config --global --add datalad.extensions.load next

Using datalad via its Python API

Open a Python environment:


            ipython

Import and start using:


                import datalad.api as dl
                dl.create(path='mydataset')

Exit the Python environment:


                exit

Quick Basics

Our dataset: Midterm YODA Data Analysis Project

DataLad dataset: https://github.com/datalad-handbook/midterm_project
Find out more: A Data Analysis Project with DataLad
All inputs (i.e. building blocks from other sources) are located in the input/ subdataset
Custom code is located in code/
Relevant software is included as a software container
Outcomes are generated with a provenance tracked run command, and located in the root of the dataset:

prediction_report.csv contains the main classification metrics
output/pairwise_relationships.png is a plot of the relations between features.


            [DS~0] ~/midterm_project
            ├── CHANGELOG.md
            ├── README.md
            ├── code/
            │   ├── README.md
            │   └── script.py
            ├── [DS~1] input/
            │   └── iris.csv -> .git/annex/objects/...
            ├── pairwise_relationships.png -> .git/annex/objects/...
            └── prediction_report.csv -> .git/annex/objects/...

Our dataset: Midterm YODA Data Analysis Project

Let's explore the dataset briefly

Install the dataset:


            datalad clone \
            https://github.com/datalad-handbook/midterm_project.git

Find out about its subdatasets


            cd midterm_project
            datalad subdatasets

Get some contents


            datalad get input

Drop some contents


            datalad drop input

Find out about its history

tig

Reproduce an analysis


            datalad rerun HEAD~2

Our plan

Learn - How do we publish data?
Do - Publish data to:

GitLab
OSF
Sciebo (webdav)
Dataverse

"Share data like source code"

Datasets can be cloned, pushed, and updated from and to local and remote paths, remote hosting services, external special remotes

Examples:
Local path

../my-projects/experiment_data

Remote path

myuser@myinstitutes.hcp.system:/home/myuser/my-projects/experiment_data

Hosting service

git.github.com:myuser/experiment_data.git

External special remotes

osf://my-osf-project-id

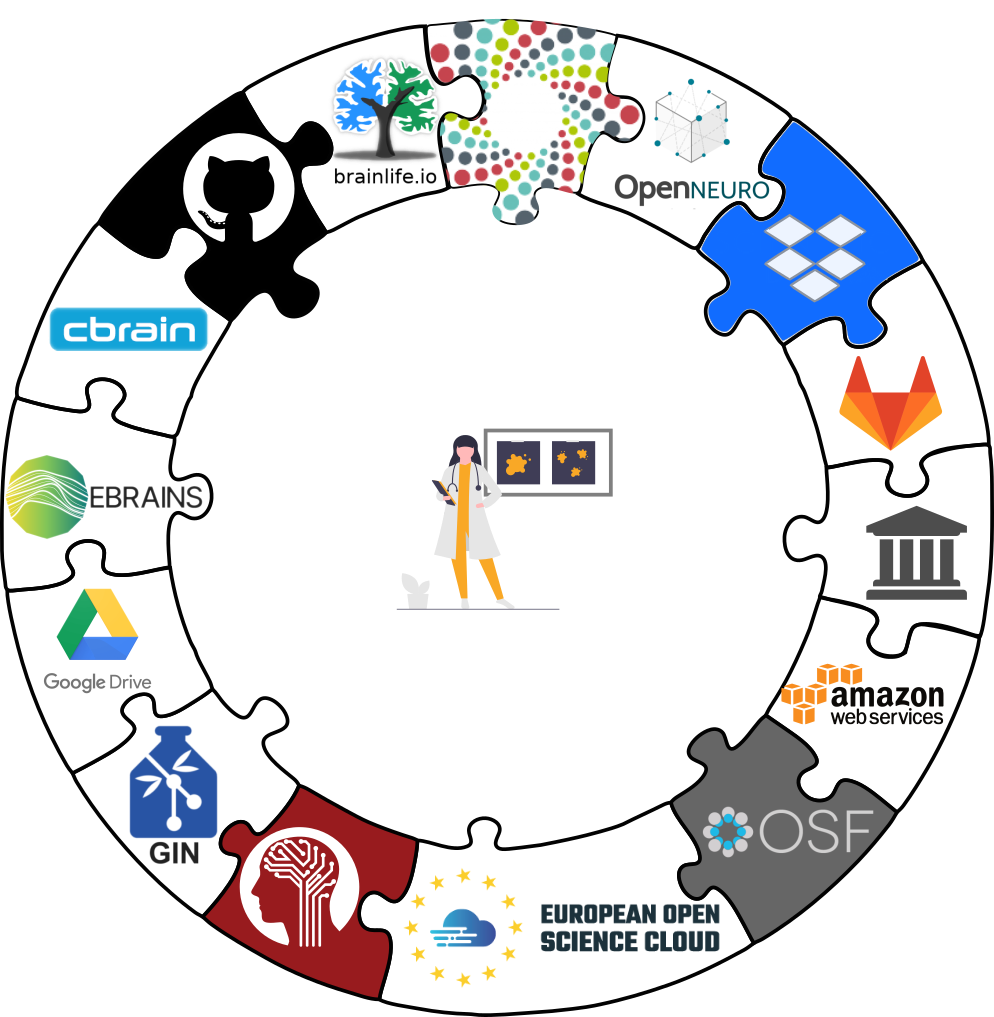

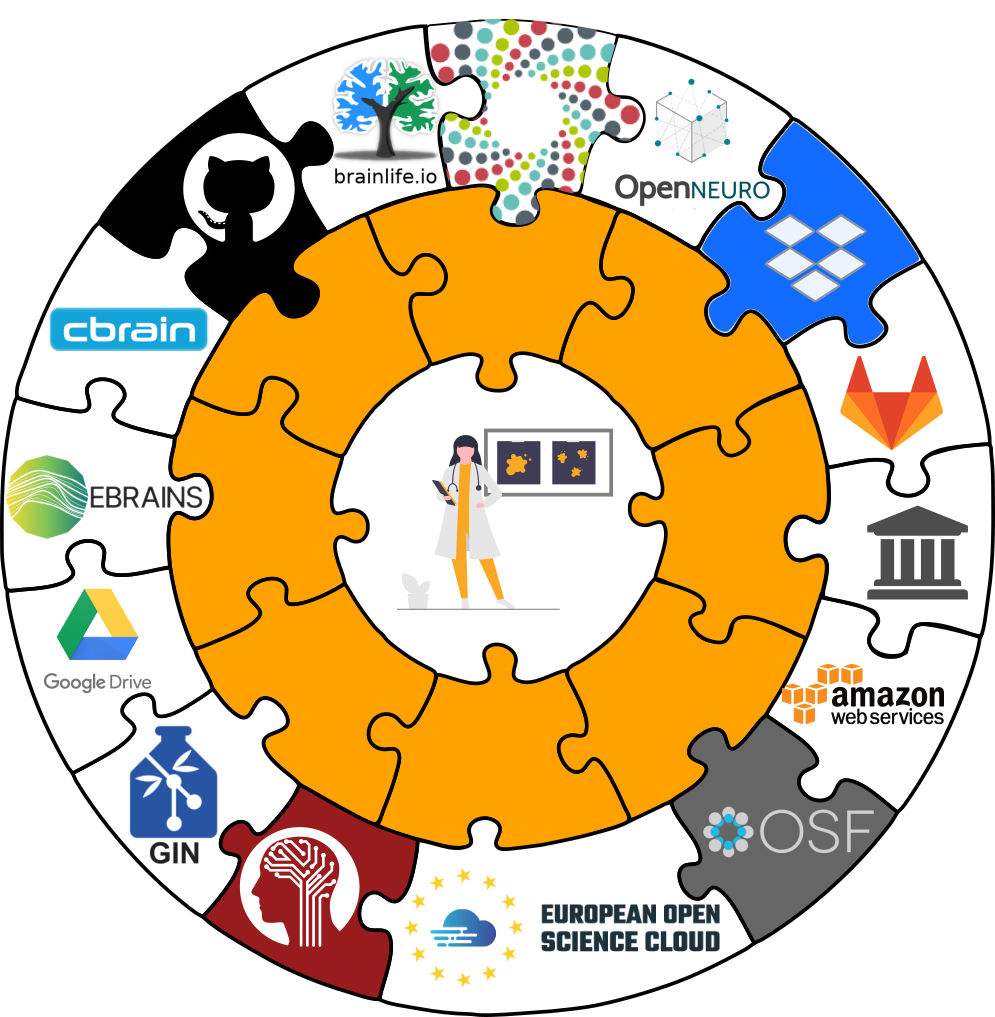

Interoperability

DataLad is built to maximize interoperability and use with hosting and storage technology

See the chapter Third party infrastructure for walk-throughs for different services

Interoperability

DataLad is built to maximize interoperability and use with hosting and storage technology

See the chapter Third party infrastructure for walk-throughs for different services

Publishing datasets

I have a dataset on my computer. How can I share it, or collaborate on it?

Glossary

Sibling (remote): Linked clones of a dataset. You can usually update (from) siblings to keep all your siblings in sync (e.g., ongoing data acquisition stored on experiment compute and backed up on cluster and external hard-drive)
Repository hosting service: Webservices to host Git repositories, such as GitHub, GitLab, Bitbucket, Gin, ...
Third-party storage: Infrastructure (private/commercial/free/...) that can host data. A "special remote" protocol is used to publish or pull data to and from it
Publishing datasets: Pushing dataset contents (Git and/or annex) to a sibling using datalad push
Updating datasets: Pulling new changes from a sibling using datalad update --merge

Publishing datasets

Most public datasets separate content in Git versus git-annex behind the scenes

Publishing datasets

Typical case:

Datasets are exposed via a private or public repository on a repository hosting service
Data can't be stored in the repository hosting service, but can be kept in almost any third party storage

Publication dependencies automate pushing to the correct place, e.g.,


$ git config --local remote.github.datalad-publish-depends gdrive
# or
$ datalad siblings add --name origin --url git@git.jugit.fzj.de:adswa/experiment-data.git --publish-depends s3

Publishing datasets

Special case 1: repositories with annex support

Publishing datasets

Special case 2: Special remotes with repositories

`2a`

`Publishing to GitLab`

https://gitlab.com/

create-sibling-gitlab

(docs)

Log into GitLab
Create personal access token
Create a top-level group
Create a gitlab config file (replace relevant items)


                cat << EOF > ~/.python-gitlab.cfg
                [my-site]
                url = https://gitlab.com/
                private_token = my-gitlab-token
                api_version = 4
                EOF

5. Configure create-sibling-gitlab in the midterm_project dataset:


                datalad configuration set datalad.gitlab-default-site='my-site'
                datalad configuration set datalad.gitlab-'my-site'-project='my-top-level-group'

6. Create the sibling:


                datalad create-sibling-gitlab -d . --recursive -s 'my-gitlab-sibling'

7. Push to the sibling:


                datalad push -d . --recursive --to 'my-gitlab-sibling'

`Publishing to OSF`

https://osf.io/

create-sibling-osf

(docs)

Log into OSF
Create personal access token
Enter credentials using datalad osf-credentials:


                datalad osf-credentials

4. Create the sibling:


                datalad create-sibling-osf -d . -s my-osf-sibling \
                --title 'my-osf-project-title' --mode export --public

5. Push to the sibling:


                datalad push -d . --to my-osf-sibling

6. Clone from the sibling:


                cd ..
                datalad clone osf://my-osf-project-id my-osf-clone

`Publishing to Sciebo`

https://hochschulcloud.nrw/en/

create-sibling-webdav

(docs)

Log into Sciebo
Create a new folder, e.g., datalad-fdm
Copy your WebDAV URL and add the folder name at the end: Menu > Files > Settings > WebDAV
E.g.: https://fz-juelich.sciebo.de/remote.php/dav/files/s.heunis%40fz-juelich.de/datalad-fdm
Create the sibling:


                cd midterm_project
                datalad create-sibling-webdav \
                -d . \
                -r \
                -s my-webdav-sibling \
                --mode filetree 'my-webdav-url'

At this point, DataLad should ask for credentials if you have not entered them before. Enter your Sciebo username and password.

4. Push to the sibling:


                datalad push -d . --recursive --to my-webdav-sibling

5. Clone from the sibling:


                cd ..
                datalad clone 'datalad-annex::?type=webdav&encryption=none\
                &exporttree=yes&url=my-webdav-url/dataset-name' my-webdav-clone

`Publishing to Dataverse`

https://dataverse.org/

add-sibling-dataverse

(docs)

Create an account and log into demo.dataverse.org (or your instance)
Find your API token (Username > API Token)
Create a new Dataverse dataset
Add required metadata and save dataset
Retieve dataset DOI and the Dataverse instance URL
Create the sibling:


                cd midterm_project
                datalad add-sibling-dataverse -d . -s my-dataverse-sibling \
                'my-dataverse-instance-url' doi:'my-dataset-doi'

for example:


                datalad add-sibling-dataverse -d . -s dataverse \
                https://demo.dataverse.org  doi:10.70122/FK2/3K9FOD

(DataLad asks for credentials (token) if you haven't entered them before)

7. Push to the sibling:


                datalad push -d . --to my-dataverse-sibling

8. Clone from the sibling:


                cd ..
                datalad clone 'datalad-annex::?type=external&externaltype=dataverse\
                &encryption=none&exporttree=no&url=my-dataverse-instance-url\
                &doi='my-dataset-doi' my-sciebo-clone

Discussion

Any questions?
Any comments?
Any feature requests?

`Extra Walk-through`

`Datalad Basics`

Datalad datasets...

...Datalad datasets

Create a dataset (here, with the text2git config):


            datalad create -c text2git bids-data

Let's have a look inside. Navigate using cd (change directory):


                cd bids-data

List the directory content, including hidden files, with ls:


                ls -la .

Version control...

...Version control

Let's add some Markdown text to a README file in the dataset


            echo "# A BIDS structured dataset for my input data" > README.md

Now we can check the status of the dataset:


                datalad status

We can save the state with save


                datalad save -m "Add a short README"

Further modifications:


                echo "Contains functional task data of one subject" >> README.md

Save again:


                datalad save -m "Add information on the dataset contents to the README"

Now, let's check the dataset history:


                git log

Data consumption & transport...

...Data consumption & transport...

Install a dataset from remote URL (or local path) using clone:


            cd ../
            datalad clone \
            https://github.com/psychoinformatics-de/studyforrest-data-phase2.git

We can now view the cloned dataset's file tree:


                cd studyforrest-data-phase2
                ls

Let's check the dataset size (i.e. git repository):


                du -sh # this will print the size of the directory in human readable sizes

Let's check the actual dataset size (i.e. git repository + annexed content):


                datalad status --annex

The DataLad dataset is just the git repository, i.e. the metadata of all files in the dataset, including the content of all files comitted to git. The actual file content in the annex can be retrieved as needed.

...Data consumption & transport

We can retrieve actual file content with get (here, multiple files):


            # get all files of sub-01 for all functional runs of the localizer task
            datalad get \
            sub-01/ses-localizer/func/sub-01_ses-localizer_task-objectcategories_run-*.nii.gz

If we don't need a file locally anymore, we can drop it:


                # drop a specific file
                datalad drop \
                sub-01/ses-localizer/func/sub-01_ses-localizer_task-objectcategories_run-4_bold.nii.gz

And it's no problem if you need that exact file again, just getit:


                # get a specific file
                datalad drop \
                sub-01/ses-localizer/func/sub-01_ses-localizer_task-objectcategories_run-4_bold.nii.gz

Therefore: no need to store all files locally. Data just needs to be available from at least one location, then you can get what you want when you need it, and drop the rest.

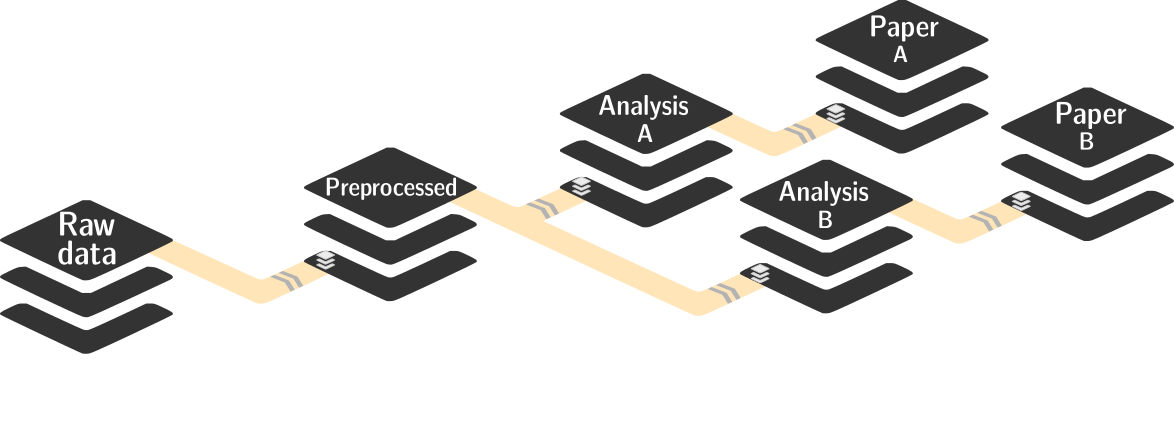

Dataset nesting...

Datasets can be nested in superdataset-subdataset hierarchies:

Helps with scaling (see e.g. the Human Connectome Project dataset )
Version control tools struggle with >100k files
Modular units improves intuitive structure and reuse potential
Versioned linkage of inputs for reproducibility

...Dataset nesting

Let's make a nest! First we navigate into the top-level dataset:


            cd ../bids-data

Then we clone the input dataset into a specific location in the file tree of the existing dataset, making it a subdataset (using the -d/--dataset flag):


                datalad clone --dataset . \
                https://github.com/datalad/example-dicom-functional.git  \
                inputs/rawdata

Similarly, we can clone the analysis container (actually, a set of containers from ReproNim) as a subdataset:


                datalad clone -d . \
                https://github.com/ReproNim/containers.git \
                code/containers

Let's see what changed in the dataset, using the subdatasets command:


                datalad subdatasets

Computationally reproducible execution...

which script/pipeline version
was run on which version of the data
to produce which version of the results?

...Computationally reproducible execution...

The datalad run can run any command in a way that links the command or script to the results it produces and the data it was computed from
The datalad rerun can take this recorded provenance and recompute the command
The datalad containers-run (from the extension) can capture software provenance in the form of software containers in addition to the provenance that datalad run captures

With the datalad-container extension, we can inspect the list of registered containers (recursively):


                datalad containers-list --recursive

We'll use the repronim-reproin container for dicom conversion.

...Computationally reproducible execution

Now, let's try out the containers-run command:


            datalad containers-run -m "Convert subject 02 to BIDS" \
            --container-name code/containers/repronim-reproin \
            --input inputs/rawdata/dicoms \
            --output sub-02 \
            "-f reproin -s 02 --bids -l '' --minmeta -o . --files inputs/rawdata/dicoms"

What changed after the containers-run command has completed?
We can use datalad diff (based on git diff):


                datalad diff -f HEAD~1

We see that some files were added to the dataset!
And we have a complete provenance record as part of the git history:


                git log -n 1

Publishing datasets...

We will use GIN: gin.g-node.org:

Create a GIN user account and log in
Create and upload an SSH key to GIN
Create a new empty repository named "bids-data" and copy it's SSH URL

...Publishing datasets

DataLad allows you to add repositories as siblings to a dataset, to which data can be published with push.


            datalad siblings add -d . \
            --name gin \
            --url git@gin.g-node.org:/your-gin-username/bids-data.git

You can verify the dataset's siblings with the siblings command:


                datalad siblings

And we can push our complete dataset (git repository and annex) to GIN:


                datalad push --to gin

Using published data...

Let's use our published data in a new analysis, to demonstrate reusability and the usefulness of modularity.

First let's create a new dataset using the yoda principles:


            cd ../
            datalad create -c yoda myanalysis

Then we can clone our GIN-published dataset as a subdataset
(NB: use the browser URL without ".git" suffix):


                cd myanalysis
                datalad clone -d . \
                https://gin.g-node.org/your-gin-username/bids-data \
                input

...Using published data...

We have data, and now we need an analysis script. We will use DataLad's download-url which gets the content of a script and registers its source:


            datalad download-url -m "Download code for brain masking from Github" \
            -O code/get_brainmask.py \
            https://raw.githubusercontent.com/datalad-handbook/resources/master/get_brainmask.py

Now we have data and an analysis script, and we still need the correct software environment within which the run the analysis. We will again use the datalad-container extension to register a container to the new dataset:


                datalad containers-add nilearn \
                --url shub://adswa/nilearn-container:latest \
                --call-fmt "singularity exec {img} {cmd}"

...Using published data

Finally, we can run the analysis:


            datalad containers-run -m "Compute brain mask" \
            -n nilearn \
            --input input/sub-02/func/sub-02_task-oneback_run-01_bold.nii.gz \
            --output figures/ \
            --output "sub-02*" \
            "python code/get_brainmask.py"

Afterwards, we can inspect how specific files came to be, e.g.:


                git log sub-02_brain-mask.nii.gz

And since the run-record is part of the dataset's git history, we know the provenance. DataLad can use this machine-readable information to rerun the analysis without you having to specify any information again:


                datalad rerun
