"Concepts & principles for reproducible science" starts in

Concepts & principles for reproducible science

CC-BY-SA Scriberia and The Turing Way

DataLad Datasets for data analysis

  • A DataLad dataset can have any structure, and use as many or few features of a dataset as required.
  • However, for data analyses it is beneficial to make use of DataLad features and structure datasets according to the YODA principles:
P1: One thing, one dataset
P2: Record where you got it from, and where it is now
P3: Record what you did to it, and with what
Find out more about the YODA principles in the handbook, and more about structuring dataset at psychoinformatics-de.github.io/rdm-course/02-structuring-data
## P1: One thing, one dataset ![](../pics/dataset_modules.png) - Create **modular** datasets: Whenever a particular collection of files could anyhow be useful in more than one context (e.g. data), put them in their own dataset, and install it as a subdataset. - Keep everything **structured**: Bundle all components of one analysis into one superdataset, and within this dataset, separate code, data, output, execution environments. - Keep a dataset **self-contained**, with relative paths in scripts to subdatasets or files. Do not use absolute paths.

Why Modularity?

Why Modularity?

  • 3. Transparency

    • Original:

/dataset
├── sample1
│   └── a001.dat
├── sample2
│   └── a001.dat
...
    Without modularity, after applied transform (preprocessing, analysis, ...):

/dataset
├── sample1
│   ├── ps34t.dat
│   └── a001.dat
├── sample2
│   ├── ps34t.dat
│   └── a001.dat
...
    Without expert/domain knowledge, no distinction between original and derived data possible.

Why Modularity?

  • 3. Transparency

    • Original:

/raw_dataset
├── sample1
│   └── a001.dat
├── sample2
│   └── a001.dat
...
    With modularity after applied transform (preprocessing, analysis, ...)

/derived_dataset
├── sample1
│   └── ps34t.dat
├── sample2
│   └── ps34t.dat
├── ...
└── inputs
    └── raw
        ├── sample1
        │   └── a001.dat
        ├── sample2
        │   └── a001.dat
        ...
    Clearer separation of semantics, through use of pristine version of original dataset within a new, additional dataset holding the outputs.
## P2: Record where you got it from, and where it is now ![](../pics/data_origin.png) - **Link** individual datasets to declare data-dependencies (e.g. as subdatasets). - **Record data's origin** with appropriate commands, for example to record access URLs for individual files obtained from (unstructured) sources "in the cloud". - Share and **publish** datasets for collaboration or back-up.

Dataset linkage

$ datalad clone --dataset . http://example.com/ds inputs/rawdata

$ git diff HEAD~1
diff --git a/.gitmodules b/.gitmodules
new file mode 100644
index 0000000..c3370ba
--- /dev/null
+++ b/.gitmodules
@@ -0,0 +1,3 @@
+[submodule "inputs/rawdata"]
+       path = inputs/rawdata
+       url = http://example.com/importantds
diff --git a/inputs/rawdata b/inputs/rawdata
new file mode 160000
index 0000000..fabf852
--- /dev/null
+++ b/inputs/rawdata
@@ -0,0 +1 @@
+Subproject commit fabf8521130a13986bd6493cb33a70e580ce8572
Each (sub)dataset is a separately, but jointly version-controlled entity. If none of its data is retrieved, subdatasets are an extremely lightweight data dependency and yet actionable (datalad get retrieves contents on demand)

Example dataset structure

Link precisely versioned inputs to version-controlled outputs

## P3: Record what you did to it, and with what ![](../pics/dataset_linkage_provenance.png) - Collect and store **provenance** of all contents of a dataset that you create - "Which script produced which output?", "From which data?", "In which **software environment**?" ... Record it in an ideally machine-readable way with **datalad (containers-)run**

Sharing software environments: Why and how

Science has many different building blocks: Code, software, and data produce research outputs. The more you share, the more likely can others reproduce your results

Sharing software environments: Why and how

  • Software can be difficult or impossible to install (e.g. conflicts with existing software, or on HPC) for you or your collaborators
  • Different software versions/operating systems can produce different results: Glatard et al., doi.org/10.3389/fninf.2015.00012

Software containers

  • Software containers encapsulate a software environment and isolate it from a surrounding operating system. Two common solutions: Docker, Singularity
  • How familiar are you with software containers?

Software containers
  • Put simple, a cut-down virtual machine that is a portable and shareable bundle of software libraries and their dependencies
  • Docker runs on all operating systems, but requires "sudo" (i.e., admin) privileges
  • Singularity can run on computational clusters (no "sudo") but is not (well) on non-Linux
  • Their containers are different, but interoperable - e.g., Singularity can use and build Docker Images

The datalad-container extension

  • The datalad-container extension gives DataLad commands to add, track, retrieve, and execute Docker or Singularity containers.
    • pip/conda install datalad-container
  • If this extension is installed, DataLad can register software containers as "just another file" to your dataset, and datalad containers-run analysis inside the container, capturing software as additional provenance

Reproducible analysis: From DICOMs to brain masks

Sadly, handling containerized analysis on the JupyterHub isn't possible thus this is only a demonstration.
The code can be found at github.com/datalad-handbook/course

  • Step 1: Convert DICOMs to BIDS-structured NIfTI images
  • Step 2: Publish the BIDS-structured NIfTI images
  • Step 3: Reuse the NIfTI images in an analysis

Reproducible analysis: From DICOMs to brain masks

  • Step 1: Convert DICOMs to BIDS-structured NIfTI images
    • # create a superdataset
$ datalad create -c text2git bids-data
[INFO   ] Creating a new annex repo at /home/adina/bids-data
[INFO   ] scanning for unlocked files (this may take some time)
[INFO   ] Running procedure cfg_text2git
[INFO   ] == Command start (output follows) =====
[INFO   ] == Command exit (modification check follows) =====
create(ok): /home/adina/bids-data (dataset)
$ cd bids-data
# create a README
$ echo "# A BIDS structured dataset for my input data" > README.md
$ datalad status
untracked: README.md (file)
$ datalad save -m "Add a short README"
add(ok): README.md (file)
save(ok): . (dataset)
action summary:
  add (ok: 1)
  save (ok: 1)
# add the input data (DICOMs) as a subdataset
$ datalad clone --dataset . \
 https://github.com/datalad/example-dicom-functional.git  \
 inputs/rawdata'
 install(ok): inputs/rawdata (dataset)
add(ok): inputs/rawdata (file)
add(ok): .gitmodules (file)
save(ok): . (dataset)
add(ok): .gitmodules (file)
save(ok): . (dataset)
action summary:
  add (ok: 3)
  install (ok: 1)
  save (ok: 2)

Reproducible analysis: From DICOMs to brain masks

  • Step 1: Convert DICOMs to BIDS-structured NIfTI images
    • heudiconv is a flexible DICOM converter that can do the job well. It is part of a reproin, a framework for automatic DICOM to BIDS-dataset conversion. reproin is part of a public container collection that can be installed as a subdataset:
    $ datalad clone -d . \
https://github.com/ReproNim/containers.git \
code/containers
[INFO   ] scanning for unlocked files (this may take some time)
[INFO   ] Remote origin not usable by git-annex; setting annex-ignore
install(ok): code/containers (dataset)
add(ok): code/containers (file)
add(ok): .gitmodules (file)
save(ok): . (dataset)
add(ok): .gitmodules (file)
save(ok): . (dataset)
action summary:
  add (ok: 3)
  install (ok: 1)
  save (ok: 2)
# list all available containers across the dataset hierarchy
$ datalad containers-list --recursive
[...]
code/containers/repronim-reproin -> code/containers/images/repronim/repronim-reproin--0.9.0.sing
[...]
# list the direct subdataset of bids-data
$ datalad subdatasets
subdataset(ok): code/containers (dataset)
subdataset(ok): inputs/rawdata (dataset)
# use datalad containers-run to run the conversion and save its provenance
$ datalad containers-run -m "Convert subject 02 to BIDS" \
   --container-name code/containers/repronim-reproin \
   --input inputs/rawdata/dicoms \
   --output sub-02 \
   "-f reproin -s 02 --bids -l "" --minmeta -o . --files inputs/rawdata/dicoms"
[...]
 save(ok): . (dataset)
action summary:
  add (ok: 18)
  get (notneeded: 4, ok: 1)
  save (notneeded: 2, ok: 1)

Reproducible analysis: From DICOMs to brain masks

  • Step 1: Convert DICOMs to BIDS-structured NIfTI images
  • Step 2: Publish the BIDS-structured NIfTI images
    • $ datalad siblings add -d . \
--name gin \
--url git@gin.g-node.org:/adswa/bids-data.git'
$ datalad siblings
 .: here(+) [git]
[WARNING] Could not detect whether gin carries an annex. If gin is a pure Git remote, this is expected.
.: gin(-) [git@gin.g-node.org:/adswa/bids-data.git (git)]
$ datalad push --to gin
copy(ok): sourcedata/sub-02/func/sub-02_task-oneback_run-01_bold.dicom.tgz (file) [to gin...]
copy(ok): sub-02/func/sub-02_task-oneback_run-01_bold.nii.gz (file) [to gin...]
publish(ok): . (dataset) [refs/heads/git-annex->gin:refs/heads/git-annex 68523d8..b4c1ee0]
publish(ok): . (dataset) [refs/heads/master->gin:refs/heads/master [new branch]]
action summary:
  copy (ok: 2)
  publish (ok: 2)

Reproducible analysis: From DICOMs to brain masks

  • Step 1: Convert DICOMs to BIDS-structured NIfTI images
  • Step 2: Publish the BIDS-structured NIfTI images
  • Step 3: Reuse the NIfTI images in an analysis
    • $ cd ../
# create a new dataset for your analysis. The yoda procedure pre-structures it
# and applies configurations that ensure that scripts are versioned in Git
$ datalad create -c yoda myanalysis
[INFO   ] Creating a new annex repo at /home/adina/myanalysis
[INFO   ] scanning for unlocked files (this may take some time)
[INFO   ] Running procedure cfg_yoda
[INFO   ] == Command start (output follows) =====
[INFO   ] == Command exit (modification check follows) =====
create(ok): /home/adina/myanalysis (dataset)
$ cd myanalysis
$ tree
.
├── CHANGELOG.md
├── code
│   └── README.md
└── README.md

1 directory, 3 file
# add the BIDS-structured data as input - in the form of a subdataset
$ datalad clone -d . \
https://gin.g-node.org/adswa/bids-data \
input
[INFO   ] scanning for unlocked files (this may take some time)
install(ok): input (dataset)
add(ok): input (file)
add(ok): .gitmodules (file)
save(ok): . (dataset)
add(ok): .gitmodules (file)
save(ok): . (dataset)
action summary:
  add (ok: 3)
  install (ok: 1)
  save (ok: 2)

Reproducible analysis: From DICOMs to brain masks

  • Step 1: Convert DICOMs to BIDS-structured NIfTI images
  • Step 2: Publish the BIDS-structured NIfTI images
  • Step 3: Reuse the NIfTI images in an analysis
    • # Get a script for the analysis
$ datalad download-url -m "Download code for brain masking from Github" \
  -O code/get_brainmask.py \
  https://raw.githubusercontent.com/datalad-handbook/resources/master/get_brainmask.py'
[INFO   ] Downloading 'https://raw.githubusercontent.com/datalad-handbook/...
https://raw.githubusercontent.com/datalad-handbook/resources/master/get_brainmask.py:
download_url(ok): /home/adina/myanalysis/code/get_brainmask.py (file)
add(ok): code/get_brainmask.py (file)
save(ok): . (dataset)
action summary:
  add (ok: 1)
  download_url (ok: 1)
  save (ok: 1)
# Add a container with all relevant Python software
$ datalad containers-add nilearn \
  --url shub://adswa/nilearn-container:latest \
  --call-fmt "singularity exec {img} {cmd}"
[INFO   ] Initiating special remote datalad
add(ok): .datalad/config (file)
save(ok): . (dataset)
containers_add(ok): /home/adina/myanalysis/.datalad/environments/nilearn/image (file)
action summary:
  add (ok: 1)
  containers_add (ok: 1)
  save (ok: 1)
# run your containerized analysis reproducibly
$ datalad containers-run -m "Compute brain mask" \
  -n nilearn \
  --input input/sub-02/func/sub-02_task-oneback_run-01_bold.nii.gz \
  --output figures/ \
  --output "sub-02*" \
  "python code/get_brainmask.py"'
[INFO   ] Making sure inputs are available (this may take some time)
get(ok): input/sub-02/func/sub-02_task-oneback_run-01_bold.nii.gz (file) [from origin...]
[INFO   ] == Command start (output follows) =====
[INFO   ] == Command exit (modification check follows) =====
add(ok): figures/sub-02_brainmask.png (file)
add(ok): figures/sub-02_mean-epi.png (file)
add(ok): sub-02_brain-mask.nii.gz (file)
save(ok): . (dataset)
action summary:
  add (ok: 3)
  get (notneeded: 2, ok: 1)
  save (notneeded: 1, ok: 1)

Reproducible analysis: From DICOMs to brain masks

  • Step 1: Convert DICOMs to BIDS-structured NIfTI images
  • Step 2: Publish the BIDS-structured NIfTI images
  • Step 3: Reuse the NIfTI images in an analysis
    • # Ask your results how they came to be
$ git log sub-02_brain-mask.nii.gz
commit d2d35eb31a93a0a82163835de0e3c14946504811 (HEAD -> master)
Author: Adina Wagner
Date:   Wed Apr 20 16:05:40 2022 +0200

    [DATALAD RUNCMD] Compute brain mask

    === Do not change lines below ===
    {
     "chain": [],
     "cmd": "singularity exec .datalad/environments/nilearn/image python code/get_brainmask.py",
     "dsid": "421d677c-2873-49f0-a1a9-9c7bb0100e69",
     "exit": 0,
     "extra_inputs": [
      ".datalad/environments/nilearn/image"
     ],
     "inputs": [
      "input/sub-02/func/sub-02_task-oneback_run-01_bold.nii.gz"
     ],
     "outputs": [
      "figures/",
      "sub-02*"
     ],
     "pwd": "."
    }
    ^^^ Do not change lines above ^^^
# ... or recompute them
$ datalad rerun

Summary - Reproducible analysis

    datalad run records a command and its impact on the dataset.
    Data/directories specified as --input are retrieved prior to command execution, Data/directories specified as --output will be unlocked for modifications prior to a rerun of the command.

    datalad containers-run from the datalad-container extends datalad run & can be used to capture the software environment as provenance.
    Its ensures computations are ran in the desired software set up and supports Docker and Singularity containers

    Modular dataset hierarchies ensure transparency, easier access management, and reusability
    To install a dataset into an existing dataset as a subdataset, use datalad clone -d . [URL]

    The YODA procedure pre-structures and configures datasets in a way that aids reproducibility
    datalad create -c yoda newdataset applies it directory during creation

General reproducibility checklist (Hinsen, 2020)

https://www.nature.com/articles/d41586-020-02462-7
Use code/scripts
Workflows based on point-and-click interfaces (e.g. Excel), are not reproducible. Enshrine computations and data manipulation in code.
Document
Use comments, computational notebooks and README files to explain how your code works, and to define the expected parameters and the computational environment required.
Record
Make a note of key parameters, e.g. ‘seed’ values used to start a random-number generator.
Test
Create a suite of test functions. Use positive and negative control data sets to ensure you get the expected results, and run those tests throughout development to squash bugs as they arise.
Guide
Create a master script (for example, a ‘run.sh’ file or a Makefile) that downloads required data sets and variables, executes your workflow and provides an obvious entry point to the code.

General reproducibility checklist (Hinsen, 2020)

https://www.nature.com/articles/d41586-020-02462-7
Archive
GitHub is a popular but impermanent online repository. Archiving services such as Zenodo, Figshare and Software Heritage promise long-term stability.
Track
Use version-control tools such as Git to record your project’s history. Note which version you used to create each result.
Package
Create ready-to-use computational environments using containerization tools (for example, Docker, Singularity), web services (Code Ocean, Gigantum, Binder) or virtual-environment managers (Conda).
Automate
Use continuous-integration services (for example, Travis CI) to automatically test your code over time, and in various computational environments
Simplify
Avoid niche or hard-to-install third-party code libraries that can complicate reuse.
Verify
Check your code’s portability by running it in a range of computing environments.

Did you know...

Use code/scripts
Workflows based on point-and-click interfaces (e.g. Excel), are not reproducible. Enshrine computations and data manipulation in code.


  • First: YES! Very much so!
  • But if your workflow includes interactive code sessions, and you want to at least save the results, you could do
    datalad run ipython/R/matlab/...
  • Once you close the interactive session, every result you created would be saved (although with crappy provenance)

Did you know...

Document
Use comments, computational notebooks and README files to explain how your code works, and to define the expected parameters and the computational environment required.
Record
Make a note of key parameters, e.g. ‘seed’ values used to start a random-number generator.


  • Commit messages and run records can do this for you, and are a useful basis to extend upon with "documentation for humans" such as READMEs
  • If you create datasets using datalad create -c yoda ... the YODA procedure automatically populates your repository with README files to nudge you into using them (and makes sure that code is versioned with Git).

Did you know...

Test
Create a suite of test functions. Use positive and negative control data sets to ensure you get the expected results, and run those tests throughout development to squash bugs as they arise.


  • There is an excellent Turing Way chapter about it
  • Because annexed files are stored by their content identity hash, if any change in your pipeline/workflow produces a changed results, the version control software will be able to tell you

Did you know...

Guide
Create a master script (for example, a ‘run.sh’ file) that downloads required data sets and variables, executes your workflow and provides an obvious entry point to the code.


Did you know...

Archive
Archiving services such as Zenodo, Figshare and Software Heritage promise long-term stability.

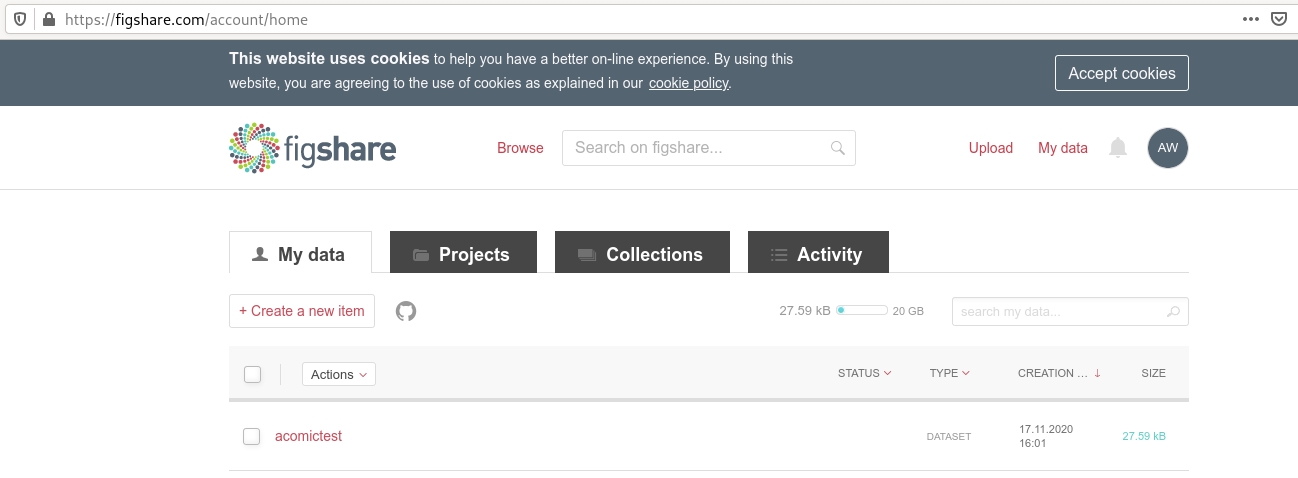

You can archive a dataset to figshare?
If you have a Figshare account, you can do the following:

$ datalad export-to-figshare
[INFO   ] Exporting current tree as an archive under /tmp/comics since figshare does not support directories
[INFO   ] Uploading /tmp/comics/datalad_ce82ff1f-e2b3-4a84-9e56-87d8eb6e5b27.zip to figshare
Article
Would you like to create a new article to upload to?  If not - we will list existing articles (choices: yes, no): yes

New article
Please enter the title (must be at least 3 characters long). [comics#ce82ff1f-e2b3-4a84-9e56-87d8eb6e5b27]: acomictest

[INFO   ] Created a new (private) article 13247186 at https://figshare.com/account/articles/13247186. Please visit it, enter additional meta-data and make public
[INFO   ] 'Registering' /tmp/comics/datalad_ce82ff1f-e2b3-4a84-9e56-87d8eb6e5b27.zip within annex
[INFO   ] Adding URL https://ndownloader.figshare.com/files/25509824 for it
[INFO   ] Registering links back for the content of the archive
[INFO   ] Adding content of the archive /tmp/comics/datalad_ce82ff1f-e2b3-4a84-9e56-87d8eb6e5b27.zip into annex AnnexRepo(/tmp/comics)
[INFO   ] Initiating special remote datalad-archives
[INFO   ] Finished adding /tmp/comics/datalad_ce82ff1f-e2b3-4a84-9e56-87d8eb6e5b27.zip: Files processed: 4, removed: 4, +git: 2, +annex: 2
[INFO   ] Removing generated and now registered in annex archive
export_to_figshare(ok): Dataset(/tmp/comics) [Published archive https://ndownloader.figshare.com/files/25509824]

Did you know ...

Did you know...

Package
Create ready-to-use computational environments using containerization tools (for example, Docker, Singularity), web services (Code Ocean, Gigantum, Binder) or virtual-environment managers (Conda).


  • The datalad-container extension can help to use and share software environments in your dataset
  • github.com/repronim/containers is a public DataLad dataset with access to dozens of commonly used containerized neuroimaging software

Did you know...

    Helpful resources for working with software containers:
  • repo2docker can fetch a Git repository/DataLad dataset and builds a container image from configuration files
  • neurodocker can generate custom Dockerfiles and Singularity recipes for neuroimaging.
  • The ReproNim container collection, a DataLad dataset that includes common neuroimaging software as configured singularity containers.
  • rocker - Docker container for R users

Summary

Where can DataLad help?
Illustration by Scriberia and The Turing Way Reproducible
automatic recompute
and identity checks
Replicable
Easily exchange
input data
Robust
Reuse data & change
code, update paper
Generalisable
Share analysis in an
easily reusable and
adaptable framework

Questions!

Backup

Adding a Singularity Image from a path

  • You can get Singularity images by "pulling" them from Singularity or Dockerhub:
    • $ singularity pull docker://nipy/heudiconv:0.5.4
$ singularity pull shub://adswa/python-ml:1
INFO:    Downloading shub image
 265.56 MiB / 265.56 MiB [==================================================] 100.00% 10.23 MiB/s 25s
  • You can also take/write a recipe file and build a container on your computer:
    $ sudo singularity build myimage Singularity.2
INFO:    Starting build...
Getting image source signatures
Copying blob 831751213a61 done
[...]
INFO:    Creating SIF file...
INFO:    Build complete: myimage
  • pulled or build images lie around as .sif or .simg files, and can be added to the dataset with their path and datalad containers-add:
    $ ls
heudiconv_0.5.4.sif
python-ml_1.sif
    • $ datalad containers-add software --url /home/me/singularity/myimage
[INFO   ] Copying local file myimage to /home/adina/repos/resources/.datalad/environments/software/image
add(ok): .datalad/environments/software/image (file)
add(ok): .datalad/config (file)
save(ok): . (dataset)
containers_add(ok): /home/adina/repos/resources/.datalad/environments/software/image (file)
action summary:
  add (ok: 2)
  containers_add (ok: 1)
  save (ok: 1)

    $ datalad containers-list
software -> .datalad/environments/software/image

Adding a Singularity Image from a URL

  • Tip: If you add Images from public URLs (e.g., Dockerhub or Singularity Hub), others can retrieve your Image easily
    • $ datalad containers-add software --url shub://adswa/python-ml:1
add(ok): .datalad/config (file)
save(ok): . (dataset)
containers_add(ok): /tmp/bla/.datalad/environments/software/image (file)
action summary:
  add (ok: 1)
  containers_add (ok: 1)
  save (ok: 1)

Adding a Docker Image from a path

  • You can get Docker images by "pulling" them from Dockerhub:
    • $ docker pull repronim/neurodocker:latest                                   1 !
latest: Pulling from repronim/neurodocker
  • You can also take/write a Dockerfile and build a container on your computer:
    $ sudo docker build -t adwagner/somedockercontainer .
Sending build context to Docker daemon  6.656kB
Step 1/4 : FROM python:3.6
[...]
Successfully built 31d6acc37184
Successfully tagged adwagner/somedockercontainer:latest
  • Show docker images:
    $ docker images
REPOSITORY                      TAG                 IMAGE ID            CREATED             SIZE
repronim/neurodocker            latest              84b9023f0019        7 months ago        81.5MB
adwagner/min_preproc            latest              fca4a144b61f        8 months ago        5.96GB
[...]

Adding a Docker image from a URL

  • $ datalad containers-add --url dhub://busybox:1.30 bb
[INFO] Saved busybox:1.30 to C:\Users\datalad\testing\blablablabla\.datalad\environments\bb\image
add(ok): .datalad\environments\bb\image\64f5d945efcc0f39ab11b3cd4ba403cc9fefe1fa3613123ca016cf3708e8cafb.json (file)
add(ok): .datalad\environments\bb\image\a57c26390d4b78fd575fac72ed31f16a7a2fa3ebdccae4598513e8964dace9b2\VERSION (file)
add(ok): .datalad\environments\bb\image\a57c26390d4b78fd575fac72ed31f16a7a2fa3ebdccae4598513e8964dace9b2\json (file)
add(ok): .datalad\environments\bb\image\a57c26390d4b78fd575fac72ed31f16a7a2fa3ebdccae4598513e8964dace9b2\layer.tar (file)
add(ok): .datalad\environments\bb\image\manifest.json (file)
add(ok): .datalad\environments\bb\image\repositories (file)
add(ok): .datalad\config (file)
save(ok): . (dataset)
containers_add(ok): C:\Users\datalad\testing\blablablabla\.datalad\environments\bb\image (file)
action summary:
  add (ok: 7)
  containers_add (ok: 1)
  save (ok: 1)

Configure containers

  • datalad containers-run executes any command inside of the specified container. How does it work?
    • $ cat .datalad/config
[datalad "containers.midterm-software"]
	updateurl = shub://adswa/resources:1
	image = .datalad/environments/midterm-software/image
	cmdexec = singularity exec {img} {cmd}
  • You can configure the command execution however you like:
    $ datalad containers-add fmriprep \
--url shub://ReproNim/containers:bids-fmriprep--20.1.1 \
--call-fmt 'singurity run --cleanenv -B $PWD,$PWD/.tools/license.txt {img} {cmd}'

    workflow demonstration fMRIprep: OHBM 2020 Open Science Room presentation
