Collaborative failures

	"I can't continue my work on the project because my colleague is working on it at the moment"
"I have such a good rephrasing of the discussion, but my PI wanted to work on this part of the manuscript for the past two weeks"
	"Alright team, I propose everyone reviews the proposal and adds changes and comments, and [poor scientific coordinator] will go through all documents and merge everything!"

Collaboration in parallel improves things:

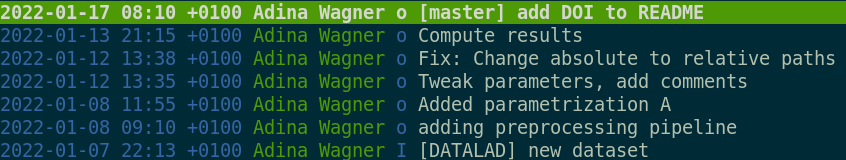

Your Git revision history is a timeline of changes

This timeline develops on a "branch" (by default "main" or "master")

Branch names

• Datasets can have unlimited branches, each with their own timeline of changes
• Each branch has a unique name, and this name serves as an identifier of the timeline
• The default branch is typically called main or master
• This default name can be configured in general using

  git config --global init.defaultbranch main

• Or initialized during dataset creation using

  datalad create mydataset --initial-branch main

• Running git status shows you which branch you're on

  $ git status
  On branch main
  nothing to commit, working tree clean

• Running git branch shows you which branch you're on and which other branches you have

  $ git branch
    git-annex
  * main

• The git-annex branch special, and only modified by git-annex

How to do branching - basic workflow and commands

The default branch will be created together with the dataset $ datalad create mydataset

How to do branching - basic workflow and commands

Every commit (datalad save) on this branch progresses its timeline $ datalad save -m \ "adding preprocessing pipeline"

How to do branching - basic workflow and commands

Every commit (datalad save) on this branch progresses its timeline $ datalad save -m \ "adding preprocessing pipeline" But sometimes you're not sure if a new thing you're trying will work out in the end

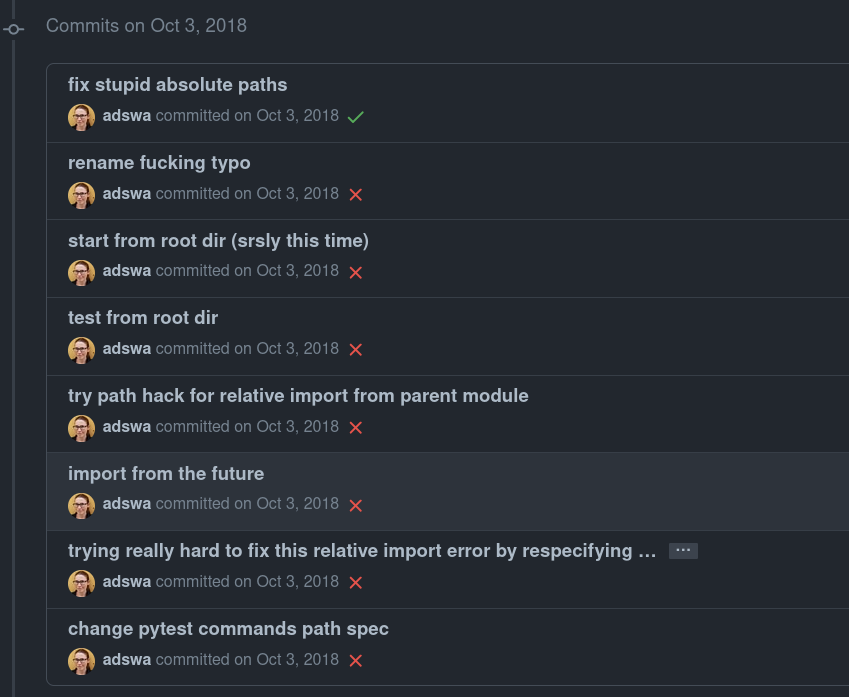

My own very first version controlled project:

How to do branching - basic workflow and commands

You can create new branches for transparency, structure, sandboxing new developments, collaboration, or fun $ git branch preproc $ git checkout preproc # or shorter: $ git checkout -b preproc The new branch shares the history with its base branch but adds independent new changes $ datalad save -m \ "Added parametrization A"

How to do branching - basic workflow and commands

You can add as many changes to the branch as you want - the default branch "stays in the past" while you test new changes After a few changes, you might be confident to run your script on data and save the results $ datalad save -m \ "Tweak parameter, add comments" $ ... $ datalad save -m / "Compute results"

How to do branching - basic workflow and commands

When done with sand- boxing and the results look ok, you could integrate the changes from preproc into the default branch. You can jump between branches, and merge one or more branches into another branch $ git checkout main $ git merge preproc Advantages: - Transparency - Cleanliness - If sandboxing fails don't merge and your default branch stays orderly - Keep different preprocessing in parallel

How to do branching - Time is fluid

Branches allow parallel developments. While you tweaked the parameters, a fix for a path problem was fixed in a new branch and merged to main # create & enter a new branch # from main $ git branch fix-paths $ git checkout fix-paths $ datalad save -m \ "Fix:Change abs to rel paths" # merge the fix into main $ git checkout main $ git merge fix-paths However: How does preproc get the crucial fix from main?

How to do branching - Time is fluid

You can merge main (contains the fix) into preproc to keep preproc up to date with main's new developments $ git checkout preproc $ git merge main Results can safely be computed when the fix has made it into preproc's timeline $ datalad save -m \ "Compute results"

How to do branching - time is fluid

Merging preproc into main adds all the changes main doesn't yet know about from preproc $ git checkout main $ git merge preproc Development that doesn't require sandboxing and won't lead to disorder can continue on main $ datalad save -m \ "add DOI to README"

Summary - solitary branching

• Branching relies completely on Git commands. The most important are:

git branch [branchname]

Create a new branch

git checkout [branchname]

Switch to a different, existing branch

git checkout -b [branchname]

Create a new branch and switch to it (shortcut)

git merge [branchname]

Integrate the changes from one branch into the one currently checked out

• Some advantages of branching in a dataset only you work on are:
• Sandboxing developments
• Keeping parallel developments (e.g., different preprocessing flavours)

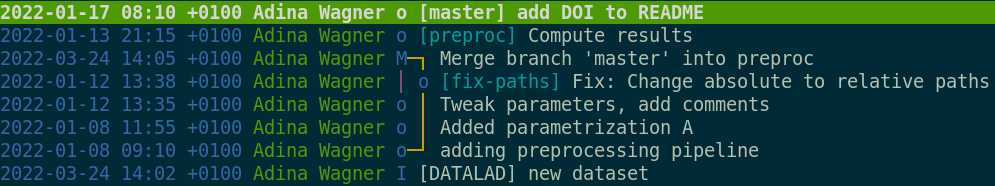

• Cleanliness and order, and slightly more exciting visualizations of your history

Questions!

Branching workflows in collaborations

How to do branching - across time and space

In collaborative workflows each collaborator has their own copy of a dataset, and there also is a central dataset used to let collaborators synchronize their work To let others collaborate on your dataset, you put it to a central place e.g., repository hosting services like GitHub $ datalad create-sibling-github \ mydataset -n upstream \ --access-protocol ssh Once you have created the central sibling you can push your changes $ datalad push --to upstream

Detour: Authentication and access

There are three things you typically need to set up when using a repository hosting service:
• Have an account on that service
• Create a personal tokens for authentication
• Set up SSH keys to use the SSH protocol for repository access

Detour: Authentication and access

• Personal tokens for authentication

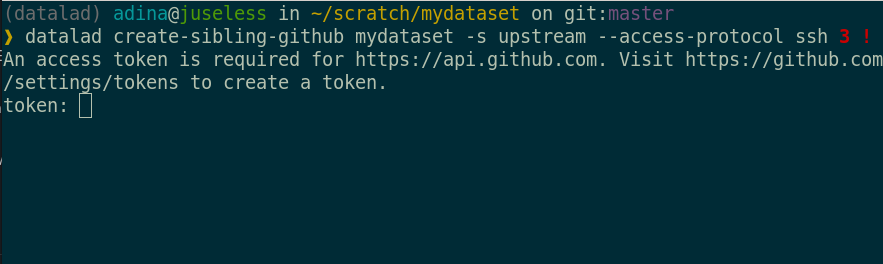

When creating a GitHub sibling for the first time, you need to supply a token:

Detour: Authentication and access

• Personal tokens for authentication

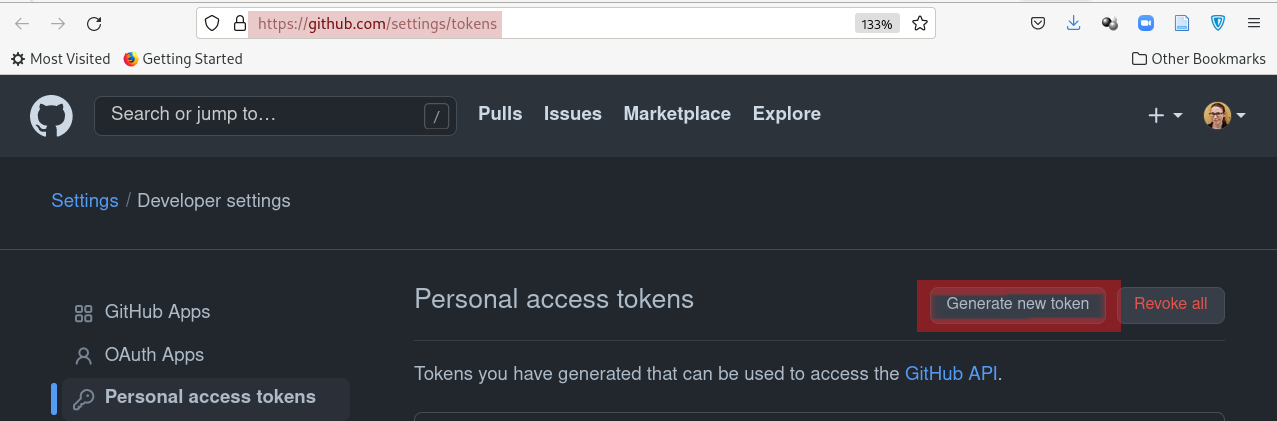

Clicking on the link takes you to the right place:

Detour: Authentication and access

• Personal tokens for authentication

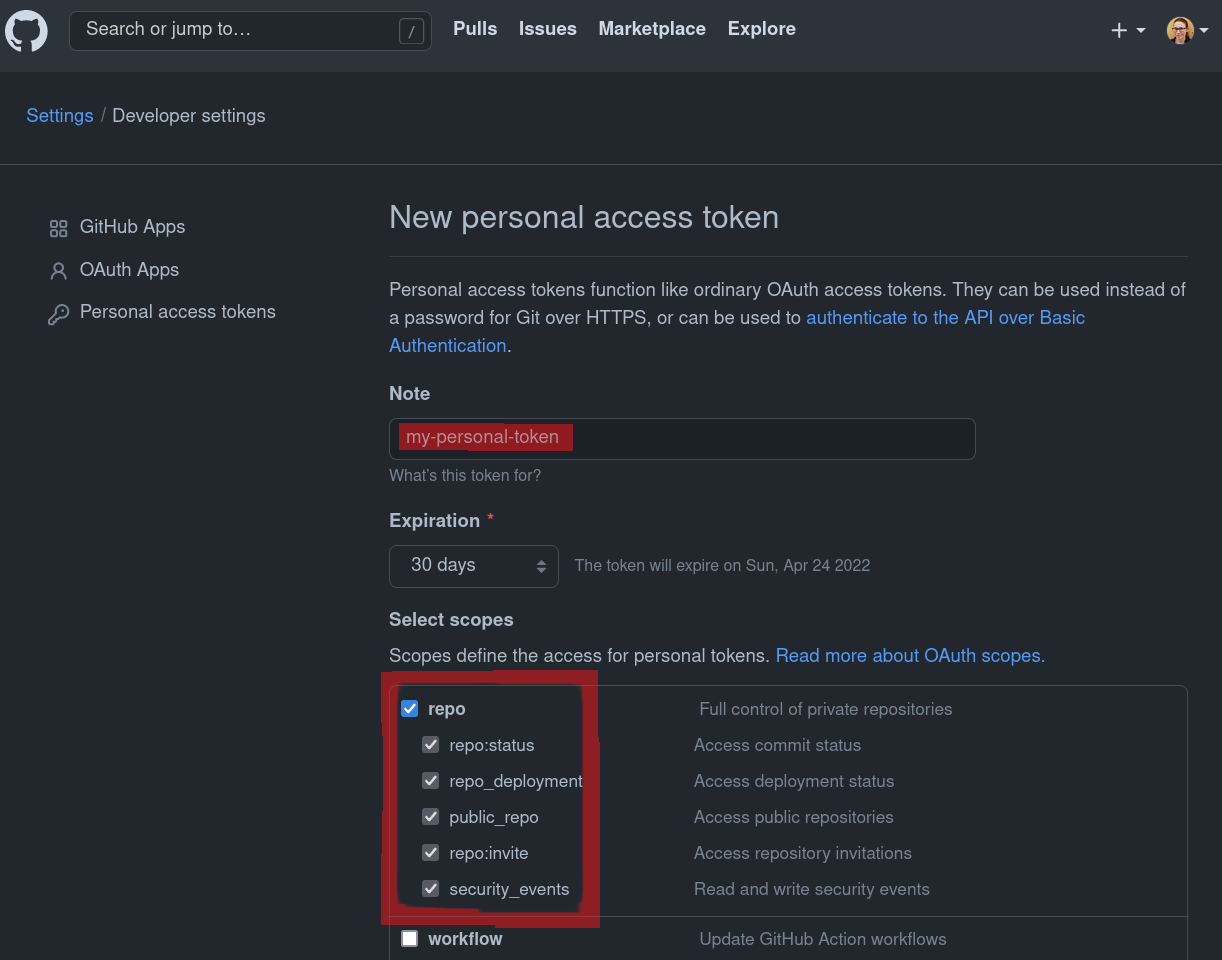

It needs appropriate permissions to create or modify repositories:

Detour: Authentication and access

• Personal tokens for authentication

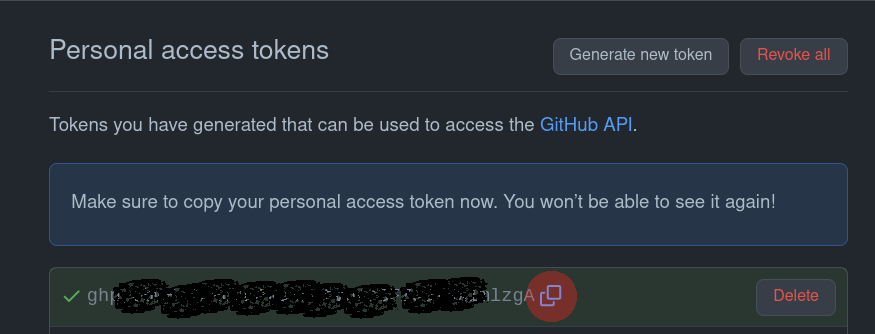

Once generated, copy it:

Detour: Authentication and access

• Personal tokens for authentication

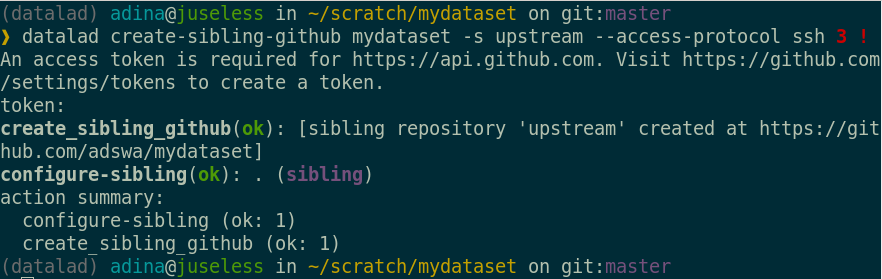

... and supply it to the command line:

Detour: Authentication and access

• Personal tokens for authentication

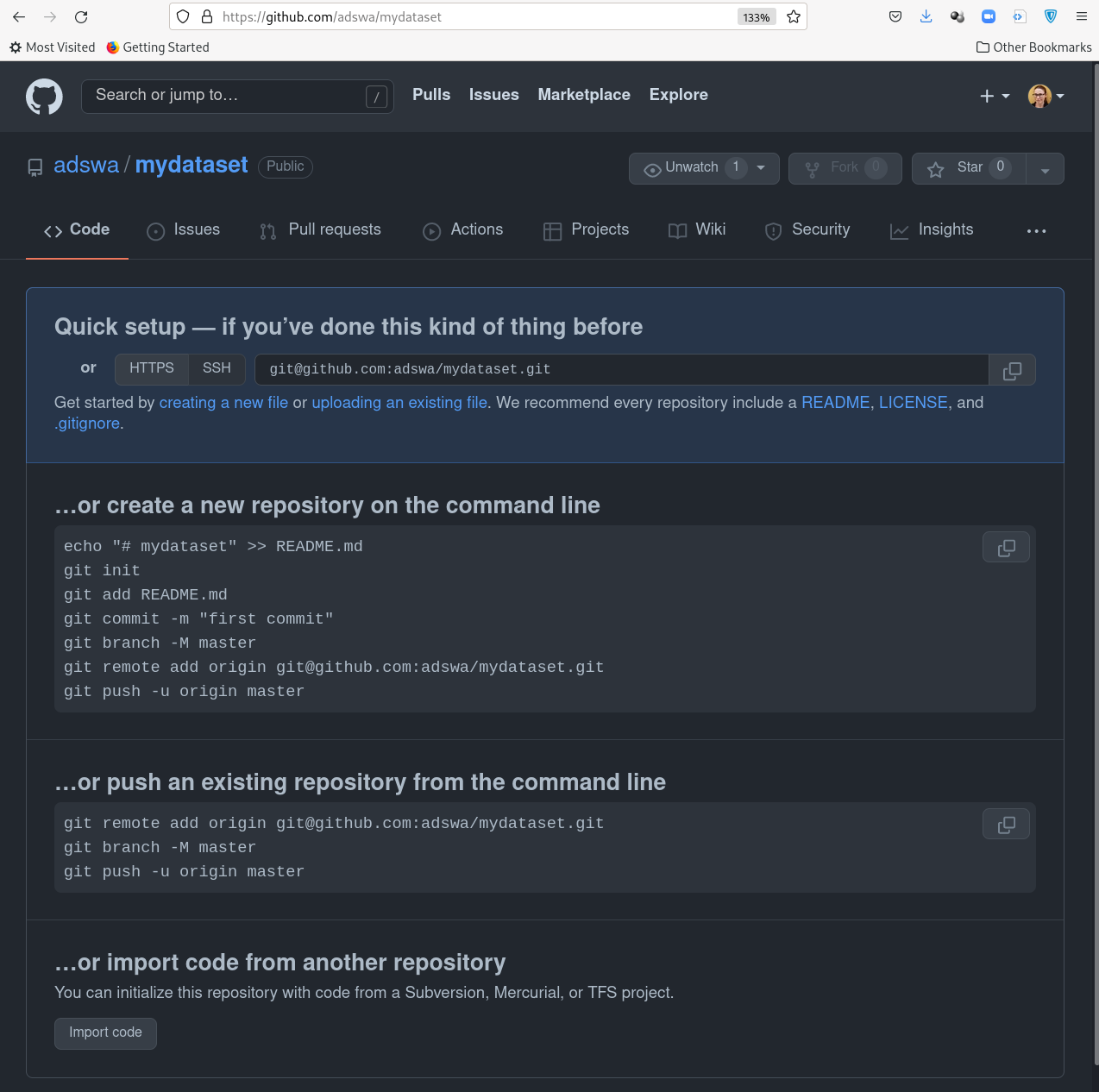

This will have created a new (but yet empty) repository on GitHub:

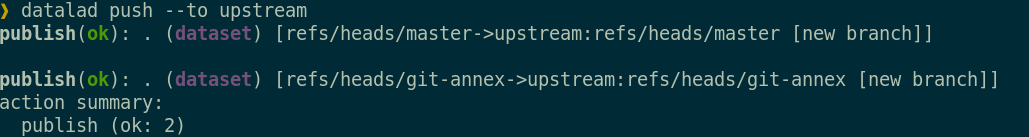

datalad push sends the local dataset changes to upstream

How to do branching - across time and space

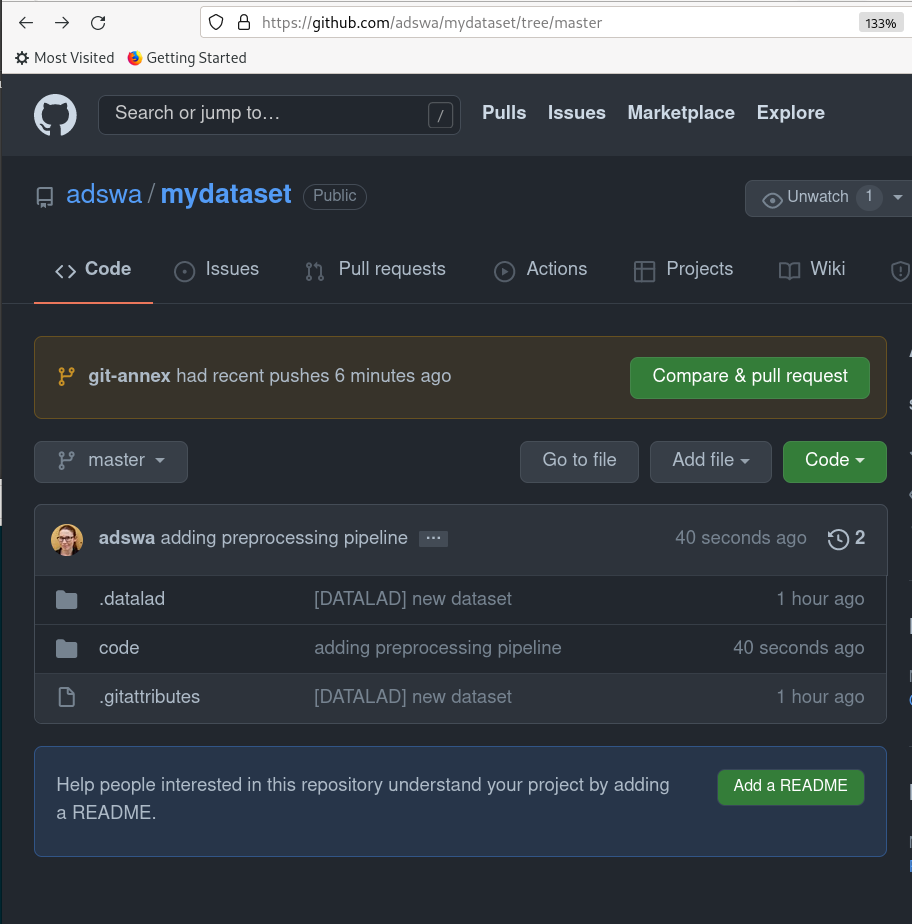

Your own dataset now has a sibling on GitHub The repo on GitHub is called "mydataset", and your local dataset knows this sibling under the name upstream

Detour: Authentication and access

• Set up SSH keys to use the SSH protocol for repository access


• Different protocols exist to synchronize changes between dataset siblings (e.g., pushing local changes upstream or pulling/updating from upstream). The most important ones are "HTTPS" and "SSH"
• If you want to use SSH (which can be more convenient), you need an account and an SSH key pair. This is a set of two files with character gibberish. You create them from the command line with an OS-specific command, e.g.

  ssh-keygen -t ed25519 -C "your_email@example.com"

  (see here for instructions for each OS)

Detour: Authentication and access

• Set up SSH keys to use the SSH protocol for repository access


• One file is secret, one is public (ends with .pub).

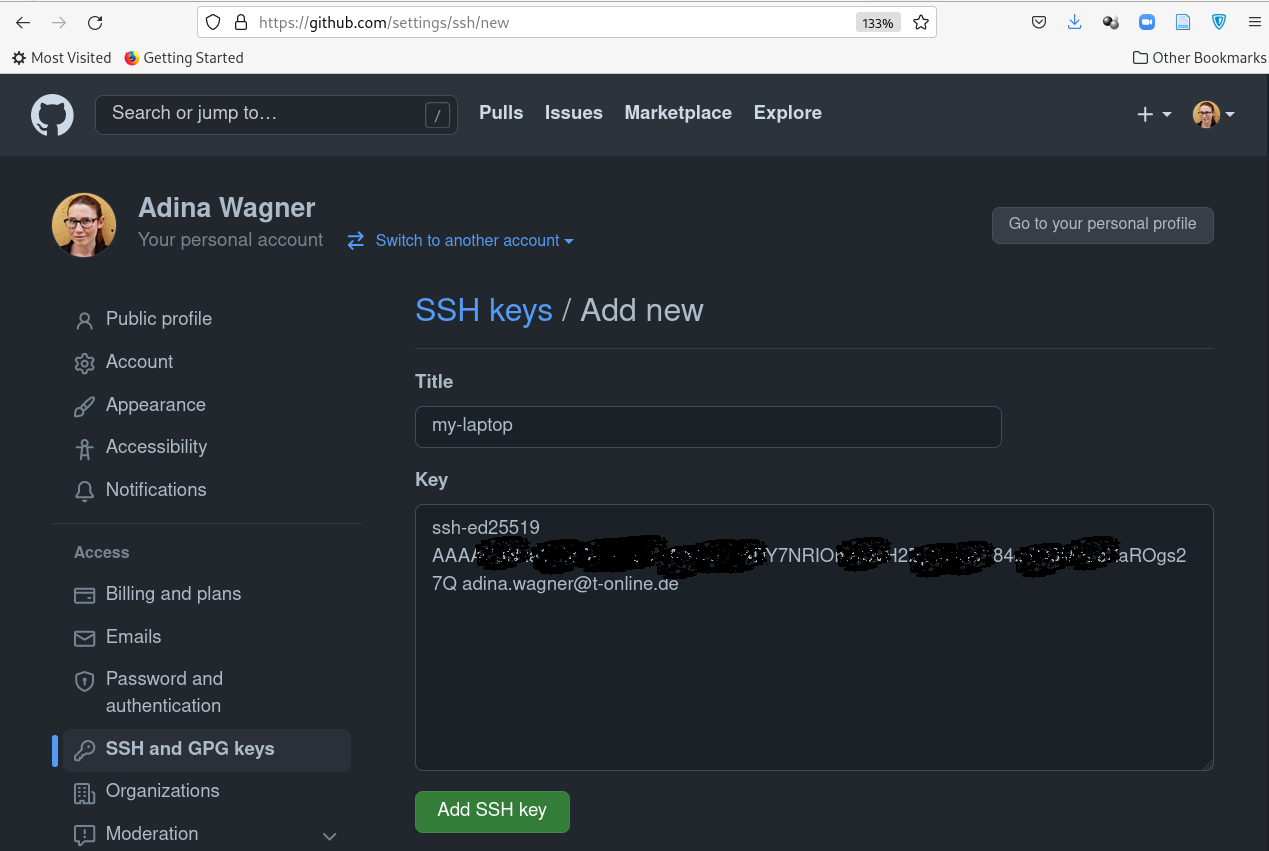

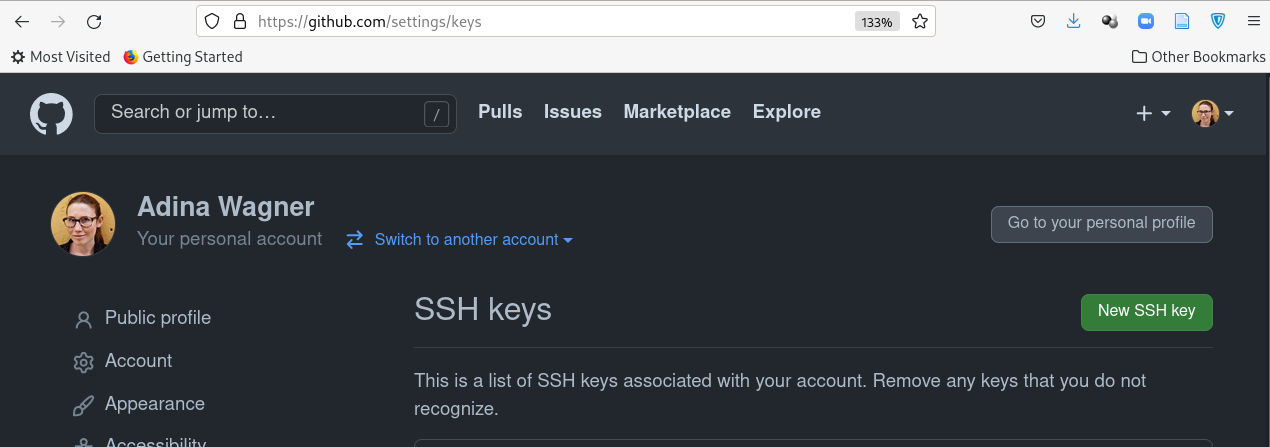

• Add the contents of the public file to your GitHub account:

Detour: Authentication and access

• Set up SSH keys to use the SSH protocol for repository access


• One file is secret, one is public (ends with .pub).
• Add the contents of the public file to your GitHub account:

How to do branching - across time and space

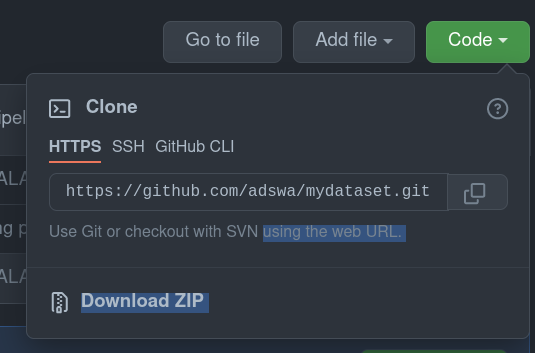

Your collaborator gets a copy of the central dataset by cloning (via preferred protocol) from GitHub. # via ssh $ datalad clone \ git@github.com:adswa/mydataset.git # via https: $ datalad clone \ https://github.com/adswa/mydataset.git You can get the clone URL right from GitHub: For consistency, they can name the sibling dataset upstream as well By default, the dataset one clones from is known as "origin" to the local clone $ git remote rename origin upstream

How to do branching - across time and space

All collaborators can work in parallel. They could work on the default branch, but this is bad practice and impractical - its better to use new branches

How to do branching - integrating other's changes

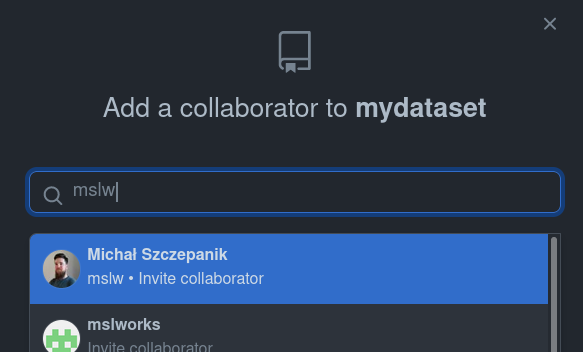

GitHub let's you add "collaborators" to repos. If collaborators are added, they can push their changes directly to the central repo # your collaborator runs $ datalad push --to upstream # or with Git $ git push upstream fix-paths If they are not a collaborator they need to create a fork of the repository under their account and clone & push there.

How to do branching - integrating other's changes

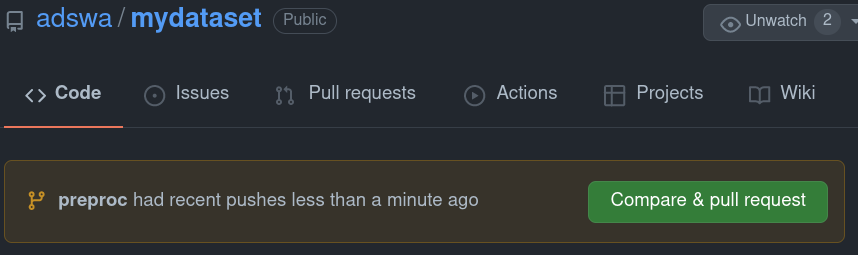

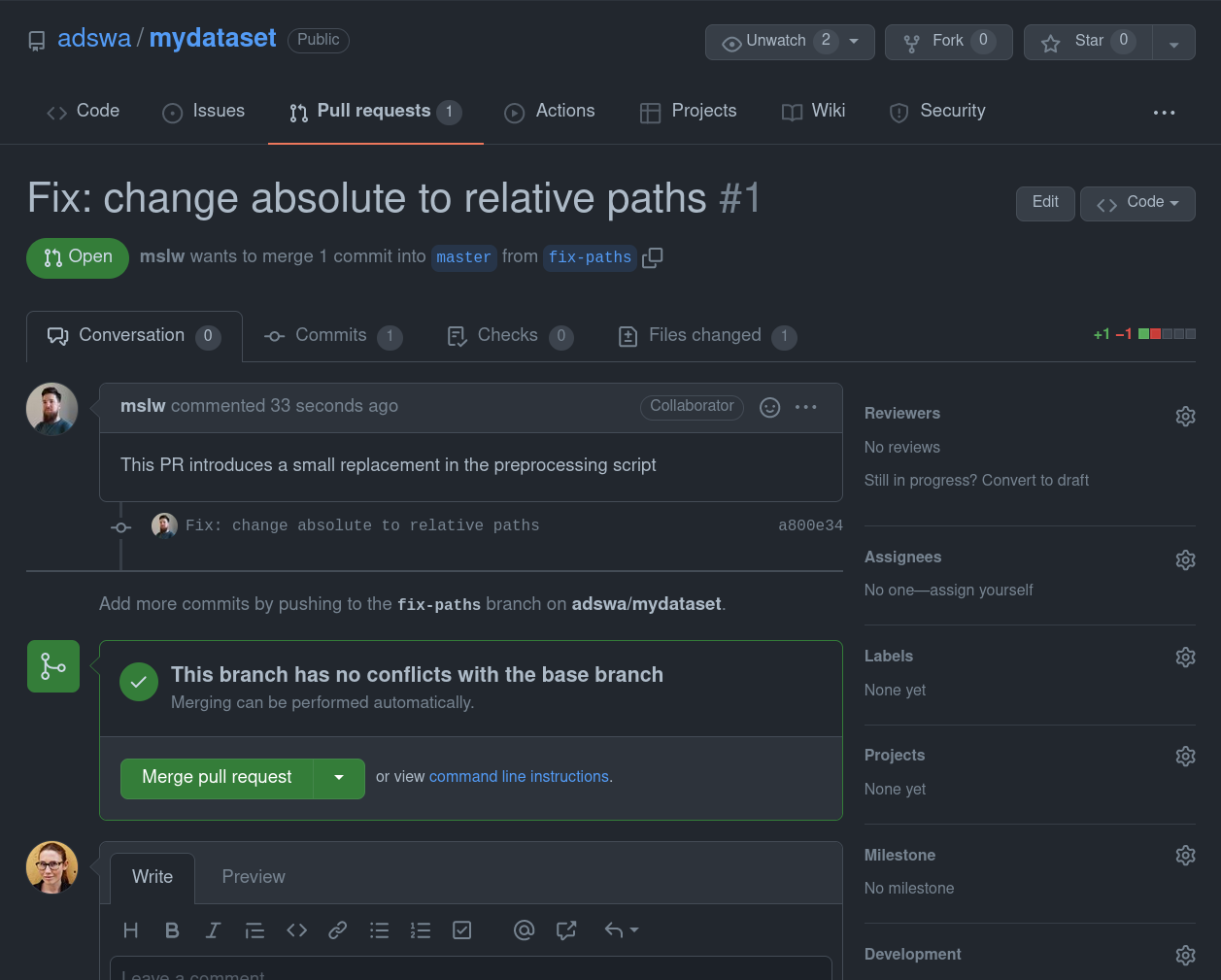

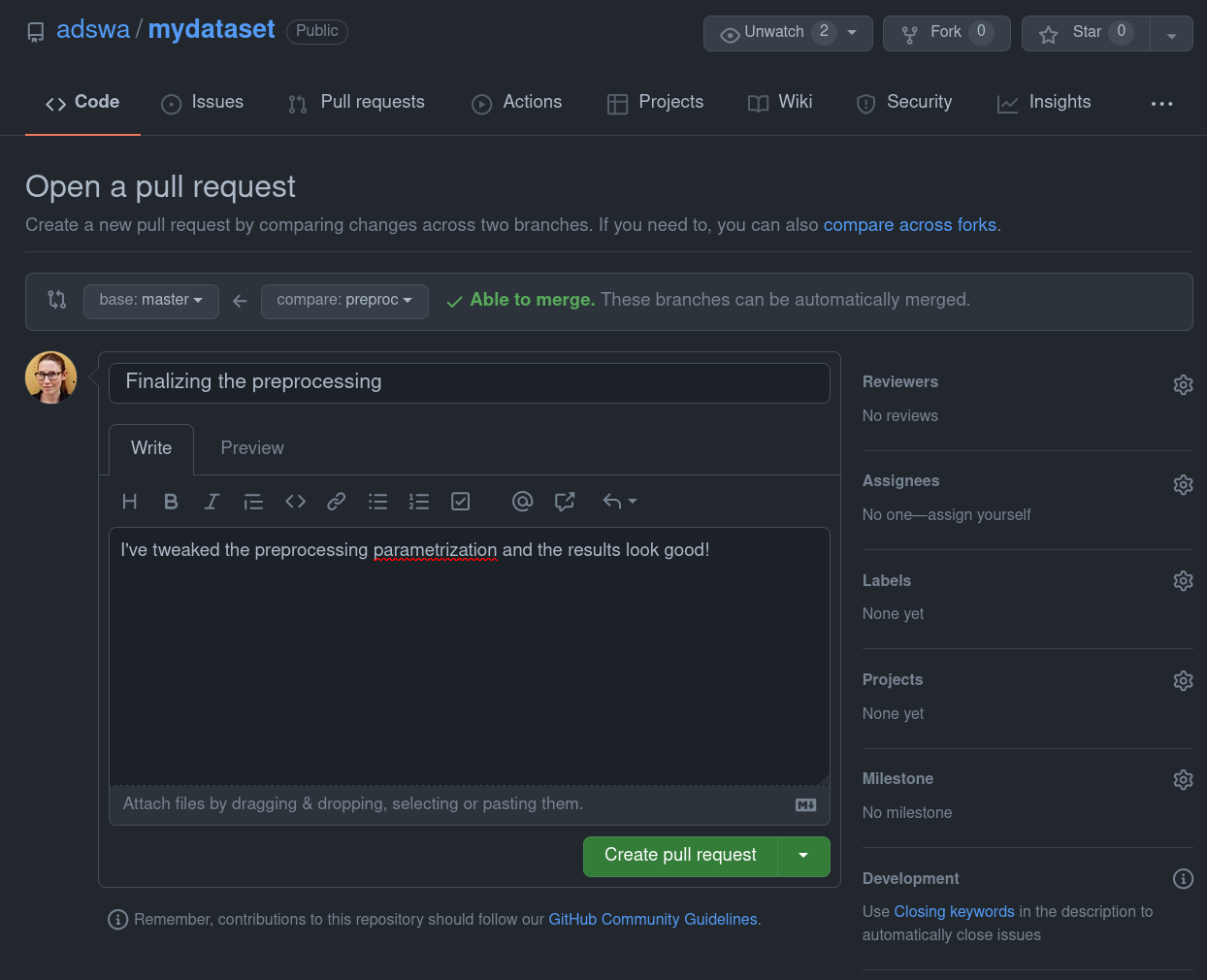

When pushing the branch to upstream, GitHub prompts you to create a pull request other repository hosting services also call this a merge request because it is a request to merge the new branch into the default one Merging the pull request merges the collaborators fix-paths branch into the default branch.

How to do branching - integrating other's changes

Others can integrate the new changes if they need them # you run on branch preproc $ git pull upstream main

How to do branching - integrating other's changes

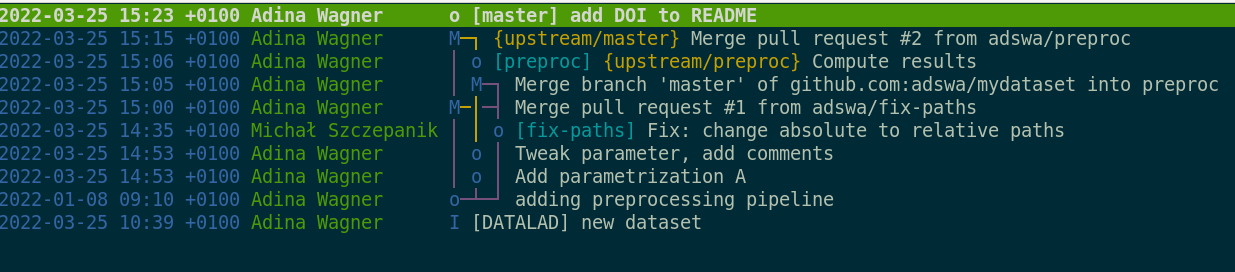

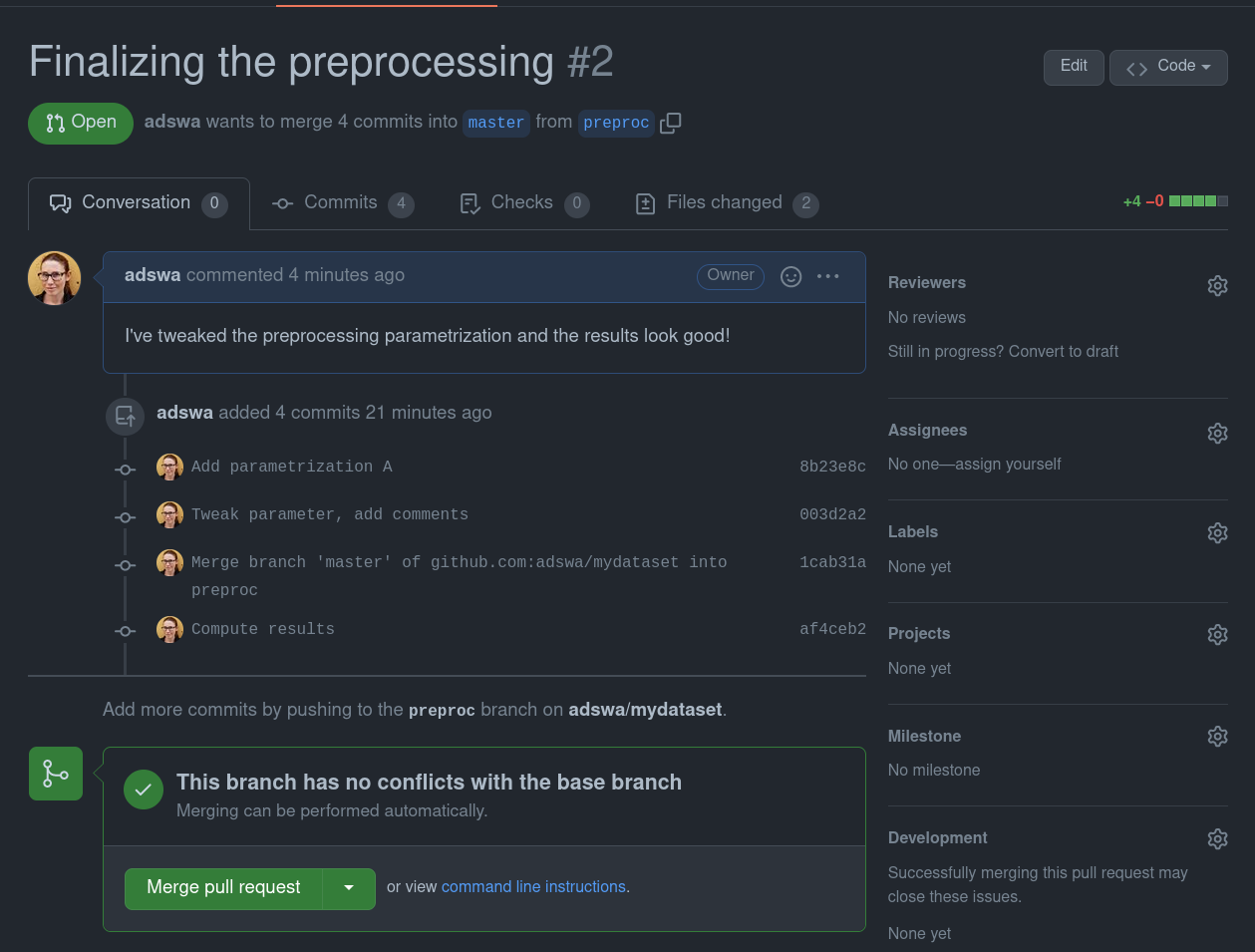

Once ready, its your time to push the changes and do a PR # you run on branch preproc $ datalad push --to upstream

How to do branching - integrating other's changes

Once ready, its your time to push the changes and do a PR # you run on branch preproc $ datalad push --to upstream

How to do branching - integrating other's changes

Once ready, its your time to push the changes and do a PR # you run on branch preproc $ datalad push --to upstream

How to do branching - integrating other's changes

Summary - collaborative branching

• Branching workflows ensure clean, parallel development by multiple people
• Collaborative workflows require a network of datasets:


clone

A dataset that was cloned from elsewhere.

sibling/remote

A dataset (clone) that a given dataset knows about. Can be established automatically (e.g., a clone knows its original dataset), or by hand (via "datalad siblings add --name [name] --url [url]" or "git remote add [name] [url]").

fork

A clone on a repository hosting site. “Forking” a repo from a different user “clones” it to your user account. Necessary when you don’t have permissions to push changes to the other users repository but still want to propose changes. Not necessary when you are a collaborator on the repository via the hosting service’s web interface.

upstream vs origin

Any clone knows its origin as a remote (by default called "origin"). A dataset can have multiple remotes (e.g., a different users’ dataset on GitHub, your own fork of this repository on GitHub). Convention: the original dataset on GitHub is "upstream", your fork of it is "origin". This involves adding a sibling/remote by hand and potentially renaming siblings/remotes (via git remote rename [name] [newname]).

Questions!

Merge conflicts

• Merge conflicts arise when a file version-controlled in Git contains conflicting changes, for example when two collaborators modified the exact same line with different changes, and Git does not have a strategy to resolve the conflict
• A merge conflict indicates:


  "Before I merge, help me choose which modification to keep"

• A merge conflict looks like this:

$ git pull upstream master                                                                    1 !
From github.com:adswa/mydataset
 * branch            master     -> FETCH_HEAD
Auto-merging code/preproc.sh
CONFLICT (content): Merge conflict in code/preproc.sh
Automatic merge failed; fix conflicts and then commit the result.

Tips for resolving merge conflicts

• git status can guide you through resolving the merge conflict. Run it frequently

$ git status                                                                                  1 !
On branch preproc
You have unmerged paths.
  (fix conflicts and run "git commit")
  (use "git merge --abort" to abort the merge)

Unmerged paths:
  (use "git add file..." to mark resolution)
	both modified:   code/preproc.sh

no changes added to commit (use "git add" and/or "git commit -a")

"I'm in a merge conflict!"

How to emergency-abort

What to do next

Which files contain conflicts

Tips for resolving merge conflicts

• Take a look into the file(s), in an editor or from the command line. Git has special mark-up to indicate conflicting changes.
• "<<<<<<<" followed by a refspec (e.g., HEAD, a branch name, a commit SHA) until "======" indicates one set of changes.
• Everything after "=======" until ">>>>>>>" followed by a refspec indicates the other set of changes

$ git diff
diff --cc code/preproc.sh
index fc3f8e8,14a0a13..0000000
--- a/code/preproc.sh
+++ b/code/preproc.sh
@@@ -1,3 -1,1 +1,7 @@@
++<<<<<<< HEAD
 +this is a script for processing
 +some parameter changes
 +some more parameter tweaks
++=======
+ fixed paths!
++>>>>>>> 9217a4b101159e6b5aab0a548aeb75fb82cca798

• The refspec identifier shows you where the change is from (e.g., "HEAD" means "most recent commit on this branch")

This is your most recent change

This is a conflicting change

• There can be multiple conflicts in a single file

Tips for resolving merge conflicts

• To fix a merge conflict...
• Remove any lines you don't want to keep. You can keep lines from both change sets!
• Remove the "<<<<<<", ">>>>>>", and "======" conflict mark-up afterwards
Example (both changes are kept):

$ git diff
diff --cc code/preproc.sh
index fc3f8e8,14a0a13..0000000
--- a/code/preproc.sh
+++ b/code/preproc.sh
@@@ -1,3 -1,1 +1,4 @@@
 +this is a script for processing
 +some parameter changes
 +some more parameter tweaks
 +fixed paths!

• git add the file
• When all files with conflicts are added, git commit to resolve the merge

$ git add code/preproc.sh
(datalad) adina@juseless in ~/scratch/mydataset on preproc+ (merge)
$ git commit
[preproc 1cab31a] Merge branch 'master' of github.com:adswa/mydataset into preproc

Tips for resolving merge conflicts

• Merge conflicts are usually harmless
• As with many other problems, git status will tell you what to do next and which commands to run
• You could configure Git to use merge strategies resulting in fewer manual resolutions, e.g., "always keep my changes if others' changes conflict". More information: git-scm.com/docs/merge-strategies
